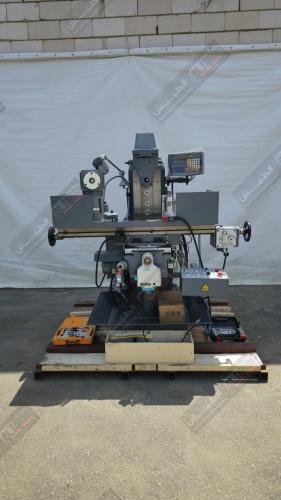

SUMORE UNIVERSAL MILLING MACHINE SP2245

SUMORE UNIVERSAL MILLING MACHINE SP2245

SUMORE / SP2245

SP2245 professional designed manual universal Milling Machine is one of our most economical and durable manual metal universal milling machine.

Export Catalogue

SKU: SALLA-661982373 Category:

SP2245 professional designed manual universal Milling Machine is one of our most economical and durable manual metal universal milling machine.

Technical Specifications

SpecificationDetails
ModelSP2245
Spindle taperISO40
Distance from spindle to table100~480mm
Spindle speeds(12 step) 40~1300r.p.m
Table size1200x280mm
Table travel(horizontal/cross)680/300
Feeding range of longitudinal cross travel22~430mm/min
X axis rapid feed speed430mm/min
Max. weight of workpiece300kg
T-slot no. /width/distance3/14mm/70mm
Main motor1.5 kw
X Axis driving motor370w
Overall dimension1520x1330x2220mm
Packing size1750x1650x2250mm
Net weight1750kg

Related products

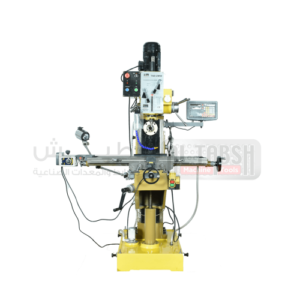

  • MILLING MACHINE TAB-UM50 WITH DRO 380V
    Universal Milling Machines

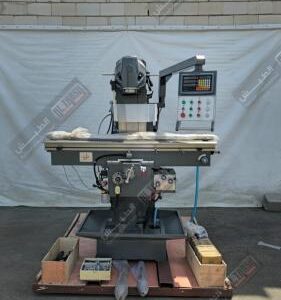

  • SUMORE MILLING MACHINE SP6436 WITH DRO TABLE SIZE 1320 X 360MM 380V
    Universal Milling Machines

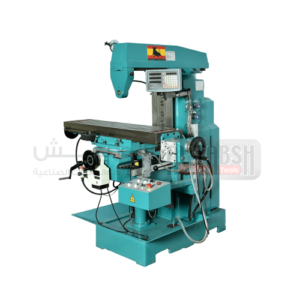

  • MILLING MACHINE SPUM2245 WITH SLOTTING HEAD, WITH DRO TABLE SIZE 1200 X 280MM 380V
