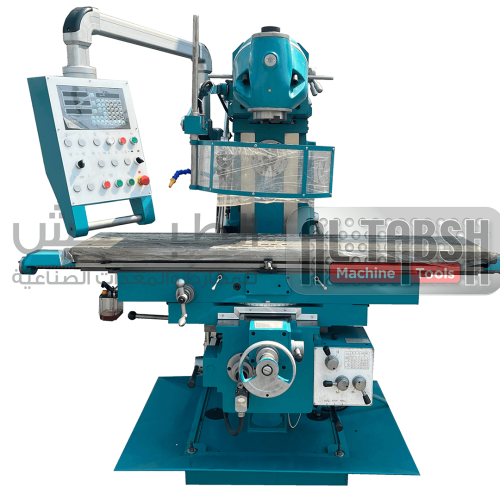

MILLING MACHINE SPUM6436 WITH DRO TABLE SIZE 1320 X 360MM 380V
SUMORI ESPANZA / SPUM6436
This universal milling machine features a 360° swiveling milling head and a table that swivels 35° left and right. It offers automatic feed on three axes through one gearbox, with a movable ram for flexible operation. The table can extend to 1600 mm, increasing the X-axis travel to 1300 mm.
This universal milling machine features a 360° swiveling milling head and a table that swivels 35° left and right. It offers automatic feed on three axes through one gearbox, with a movable ram for flexible operation. The table can extend to 1600 mm, increasing the X-axis travel to 1300 mm.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPUM6436 |
| Table size | 1650x360mm |
| T slot | 5no |
| T Slot Size ( Width ) | 14mm |
| Centre distance | 95mm |
| Max. load of Table | 400kg |
| swivel of table | ±45ºdegree |
| X axis table longitudinal travel | 1300mm |
| Y axis table cross travel | 290/280mm |
| Z axis table vertical travel | 390mm |
| MAIN | SPINDLE |
| Spindle taper | ISO50 |
| Vertical | 58-1800/12rpm |
| Spindle speed /step Horizontal | 38-1310/12rpm |
| Swivel angle of swivel head | 360ºdegree |
| Vertical spindle nose to table surface | mm |
| Horizontal spindle axis to table | 0-390mm |
| Horizontal spindle axis to arm bottom | 175mm |
| Arm travel | 500mm |
| X /Y Longitudinal/cross feed | 22-420(X), 22-393(Y)mm/min |
| Z Vertical feeding rate | 10-168(Z)mm/min |
| X/Y Longitudinal/cross rapid speed | 1290(X),1205(Y)mm/min |
| Z Rapid Traverse vertical | 513(Z)mm/min |
| Main motor | 4kw |
| (X/Y/Z) feed motor | 1.1kw |
| Coolant motor | 90w kw |
| Overall dimension | 198x202x190cm |
| Net weight / gross weight | 2600/2800kg |
