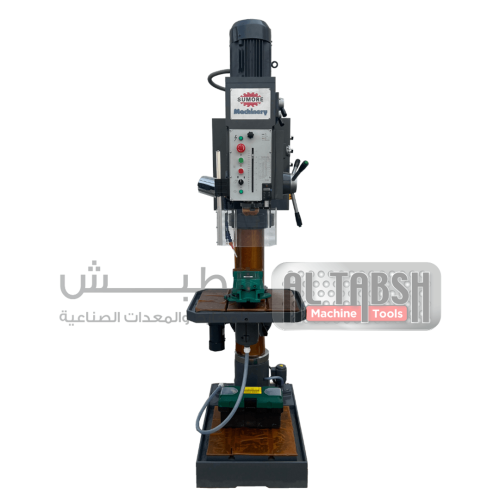

SUMORE SP-D40 DRILLING MACHINE 40MM /380V 3-PHASE
SUMORE / SP-D40
Industrial geared drilling machine SP‐D40 with 50 mm drilling capacity, MT4 spindle taper, 180 mm spindle travel, four‐step feed (0.07–0.40 mm/rev), and 12 speeds from 42 to 1865 rpm. Features a large 370×550 mm tilting table (±45°), 460×450 mm base, 170 mm column diameter, and 560 mm table travel.
Industrial geared drilling machine SP‐D40 with 50 mm drilling capacity, MT4 spindle taper, 180 mm spindle travel, four‐step feed (0.07–0.40 mm/rev), and 12 speeds from 42 to 1865 rpm. Features a large 370×550 mm tilting table (±45°), 460×450 mm base, 170 mm column diameter, and 560 mm table travel.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP-D40 |
| Drilling capacity | 50mm |
| Spindle travel | 180mm |
| Spindle taper | MT4 |
| Number of speeds | 12 |
| Speed range | 42-1865 rpm |
| Feed rates | 0.07/0.26/0.40 mm/rev |
| Table travel | 560 mm |
| Table tilt | ±45° |
| Table size | 370x550mm |
| Base size | 460x450mm |
| Column diameter | 170mm |
| T‐slots (number / size) | 2 / 14 & 16mm |
| Main motor | 2200/2800 W |
| Coolant motor | 90 W |
| Gross weight | 860 kg |
| Net weight | 800 kg |
| Packing size | 700×1150×2150 mm |
