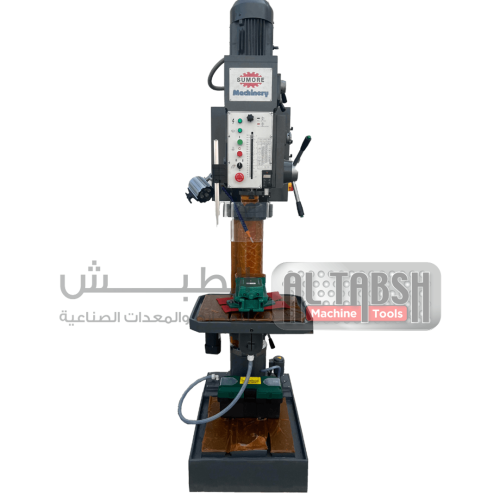

SUMORE SP-D50 DRILLING MACHINE 50MM /380V 3-PHASE
SUMORE / SP-D50
Industrial all‐geared drilling machine SP‐D50, professional for drilling up to 40 mm with MT4 spindle, 180 mm spindle travel, four‐step feed from 0.07 to 0.40 mm/rev, and 12 speeds with variable range up to 2050 rpm. Equipped with a heavy 370×500 mm tilting table (±45°), 460×450 mm base, 160 mm column diameter, and 525 mm table travel.
Industrial all‐geared drilling machine SP‐D50, professional for drilling up to 40 mm with MT4 spindle, 180 mm spindle travel, four‐step feed from 0.07 to 0.40 mm/rev, and 12 speeds with variable range up to 2050 rpm. Equipped with a heavy 370×500 mm tilting table (±45°), 460×450 mm base, 160 mm column diameter, and 525 mm table travel.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP-D50 |
| Drilling capacity | 40mm |
| Spindle travel | 180mm |
| Spindle taper | MT4 |
| Number of speeds | 12 |
| Speed range | 42-2050 rpm |
| Feed rates | 0.07/0.26/0.40 mm/rev |
| Table travel | 525 mm |
| Table tilt | ±45° |
| Table size | 370x500mm |
| Base size | 460x450mm |
| Column diameter | 160mm |
| T‐slots (number / size) | 2 / 14 & 16mm |
| Main motor | 2200/2800 W |
| Coolant motor | 90 W |
| Gross weight | 800 kg |
| Net weight | 740 kg |
| Packing size | 700×1150×2150 mm |
