SUMORE RADIAL DRILL ZQ3050/1.6M HEAVY DUTY/380V 3-PHASE / HYDRAULIC CLAMPING
SUMORE / ZQ3050/1.6M

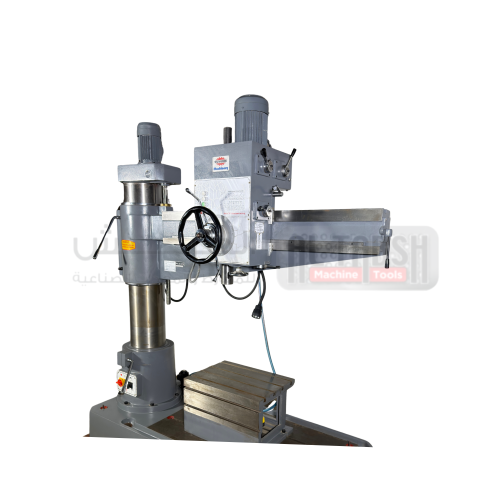

The Sumore Z3050/1.6M Hydraulic Radial Drill is a heavy-duty industrial machine designed for accurate and efficient drilling on large workpieces. It offers a maximum drilling diameter of 50mm, a 1.6m radial arm reach, and stable hydraulic clamping for reliable operation in workshops and factories. With 16 spindle speeds, 16 feed steps, and strong motor power, this model is built for demanding metalworking applications.
The Sumore Z3050/1.6M Hydraulic Radial Drill is a heavy-duty industrial machine designed for accurate and efficient drilling on large workpieces. It offers a maximum drilling diameter of 50mm, a 1.6m radial arm reach, and stable hydraulic clamping for reliable operation in workshops and factories. With 16 spindle speeds, 16 feed steps, and strong motor power, this model is built for demanding metalworking applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Z3050 HD |
| Distance between spindle axis and column | 350–1600 mm |
| Distance spindle nose and table surface | 320–1220 mm |
| Rocker arm lifting distance | 580 mm |
| Rocker arm lifting distance (speed) | 0.02 m/s |
| Spindle travel | 315 mm |
| Spindle taper | MT5 |
| Range of spindle speeds | 25–2000 r/min |
| Number of spindle speeds | 16 step |
| Range of spindle feeds | 0.04–3.20 mm/r |
| Number of spindle feeds | 16 step |
| The maximum torque of the spindle | 500 N.m |
| Table size | 630×500 mm |
| The spindle box of movable moving distance | 1250 mm |
| Spindle motor power | 4 kW |
| Hydraulic clamping motor power | 0.75 kW |
| Cooling pump motor power | 0.09 kW |
| Arm lift motor power | 1.5 kW |
| Machine weight | 3500 kg |
| Overall dimension | 2500×1100×2840 mm |
