RADIAL DRILL SPRD6320HD 2M/ 63MM HEAVY DUTY
SUMORI ESPANZA / SPRD6320HD

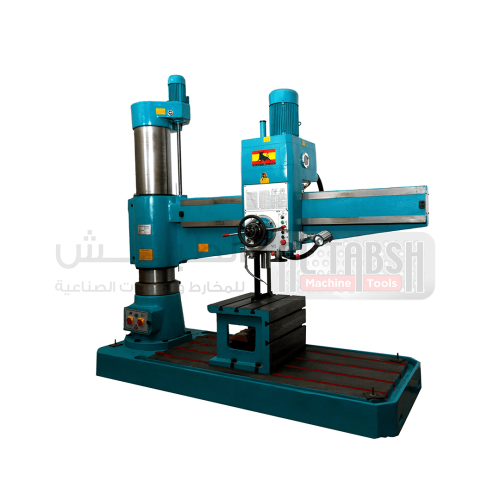

Heavy-duty SPRD6320HD Radial drilling machine This machine is a vertical drilling machinability for extra heavy-duty work that is easy to operate, safe, and reliable. It is a universal machine that could be widely used for small and middle-sized and big workpieces or drilling spot facing, reaming, tapping, etc. And it also could equip many kinds of accessories, to extend machining function and usage area.
Heavy-duty SPRD6320HD Radial drilling machine This machine is a vertical drilling machinability for extra heavy-duty work that is easy to operate, safe, and reliable. It is a universal machine that could be widely used for small and middle-sized and big workpieces or drilling spot facing, reaming, tapping, etc. And it also could equip many kinds of accessories, to extend machining function and usage area.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPRD6320HD |
| Max drilling dia | 350-2000mm |
| Distance from spindle nose to table surface Distance between spindle axis and column | face 350-1450mm |
| Spindle travel | 315 |
| Arm traverse | 580mm |
| Spindle speed range | 25-2000rpm |
| Spindle feeding range | 0.04-3.2rpm |
| Spindle feeding step | 16 |
| Spindle traverse per circle of dial | 122mm |
| Main motor power | 5.5kw |
| Movement motor power | 1.5 |
| Net weight | 5000kg |
| Overall dimension | 3000x1170x3120mm |
