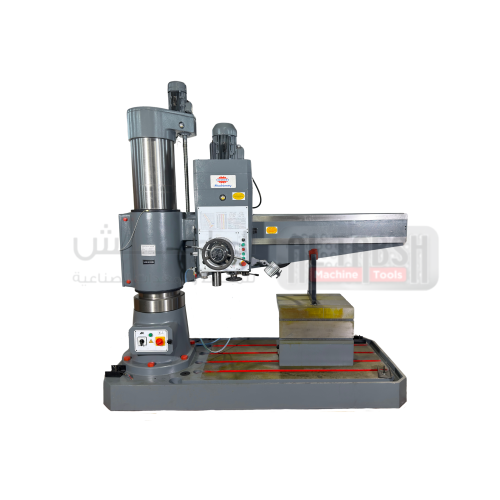

SUMORE LIGHT DUTY RADIAL DRILL MACHINE ZQ3050
SUMORE / ZQ3050
The Sumore ZQ3050/1.6M Manual Radial Drill is a robust and cost-effective industrial drilling machine designed for precision drilling on medium to large workpieces. It offers a 50mm drilling capacity and a 1.6-meter radial arm, giving users excellent reach and flexibility in workshops and metalworking facilities. Powered by a 4 kW main motor and a 1.1 kW arm lifting motor, this model delivers dependable performance for everyday light-duty drilling tasks.
The Sumore ZQ3050/1.6M Manual Radial Drill is a robust and cost-effective industrial drilling machine designed for precision drilling on medium to large workpieces. It offers a 50mm drilling capacity and a 1.6-meter radial arm, giving users excellent reach and flexibility in workshops and metalworking facilities. Powered by a 4 kW main motor and a 1.1 kW arm lifting motor, this model delivers dependable performance for everyday light-duty drilling tasks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZQ3050 LD |
| Max. drilling dia. | Iron 50 / Steel 40 mm |
| Center line of the spindle to column | Max. 1600 / Min. 360 mm |
| Horizontal traverse of spindle head | 650 mm |
| Distance from spindle nose to worktable | Max. 1150 / Min. 260 mm |
| Spindle travel | 200 mm |
| Spindle taper | MT4 |
| Spindle speed (6 steps) | 75, 130, 240, 380, 660, 1100 r/min |
| Spindle feed (3 steps) | 0.10, 0.16, 0.25 mm/r |
| Max. feed force permissible for the spindle | 11000 N |
| Vertical traverse speed of the arm | 1.3 m/min |
| Swivel of the arm | 360° |
| Main motor power | 4 kW |
| Elevating motor power | 1.1 kW |
| N.W. | 2200 kg |
