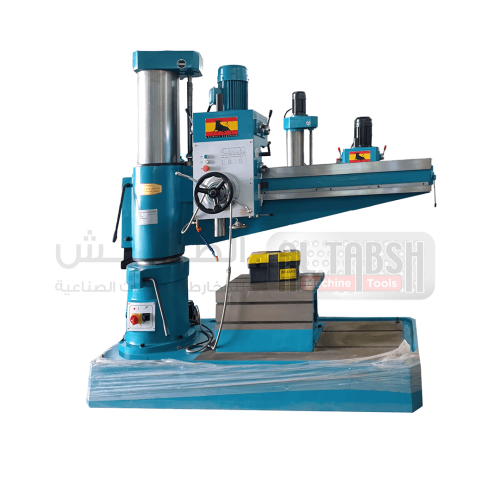

RADIAL DRILL SPRD5016LD 1.6M/ 50MM STANDARD TYPE
SUMORI ESPANZA / SPRD5016LD
SERD5016LD radial drilling machine is an ideal universal machine with wide applications for processing big medium and small parts in work shops. It’s designed for drilling, reaming, spot- facing, and tapping. This machine is one of the up-grade products featuring high performance and reliability, easy operation and Main-tenance, simple construction, long servicing life, etc.
SERD5016LD radial drilling machine is an ideal universal machine with wide applications for processing big medium and small parts in work shops. It’s designed for drilling, reaming, spot- facing, and tapping. This machine is one of the up-grade products featuring high performance and reliability, easy operation and Main-tenance, simple construction, long servicing life, etc.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SERD5016LD |
| Max. Drilling capacity steel/iron | 40/50mm |
| Centerline of spindle axis to column | 360-1600mm |
| Spindle taper | MT5 |
| Spindle travel | 220mm |
| Spindle speeds 6 | 35-1100 |
| Max. feed force permissible for the spindle | 5300 |
| Spindle feeds 6 | 0.10,0.16,0.22,0.25,0.35,0.56 |
| Distance from spindle nose to worktable | 260-1050mm |
| Vertical traverse speed of the arm | 1.3m/min |
| Swivel of arm | 360 |
| Elevating motor power | 1.5kw |
| Power of Main motor | 4kw |
| Net weight | 2100kg |
