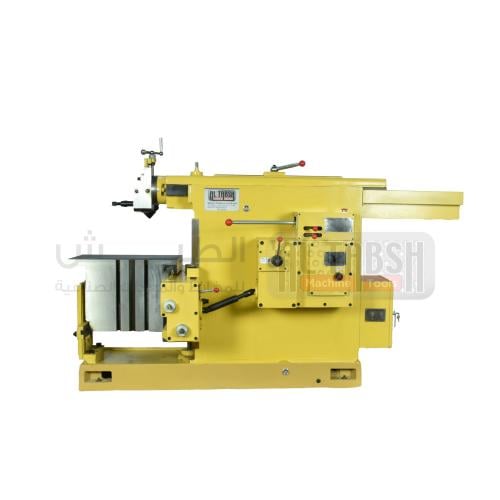

SHAPING MACHINE TAB-S6066 380V
AL-TABSH / TAB-S6066
The TAB-S6066 Shaping Machine is designed for accurate cutting and shaping operations in industrial workshops. It features adjustable table travel, multiple ram stroke speeds, and a swiveling tool head for flexible machining performance.
The TAB-S6066 Shaping Machine is designed for accurate cutting and shaping operations in industrial workshops. It features adjustable table travel, multiple ram stroke speeds, and a swiveling tool head for flexible machining performance.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-S6066 |
| Max. Cutting Length | 660 mm |
| Ram Bottom to Table Distance | 385 mm |
| Table Travel | 660 mm / Vertical: 360 mm |
| Table Size | 630 × 400 mm |
| Tool Head Travel | 120 mm |
| Ram Strokes per Minute | 14, 20, 28, 40, 56, 80 |
| Tool Head Swivel | ±60° |
| Max. Tool Shank Size | 20 × 30 mm |
| Table Power Feed | H: 0.2–2.5 mm / V: 18 mm |
| T-Slot Width | 18 mm |
| Motor Power | 3 kW |
| Overall Size | 2000 × 1300 × 1550 mm |
| Net / Gross Weight | 1750 / 1870 kg |
