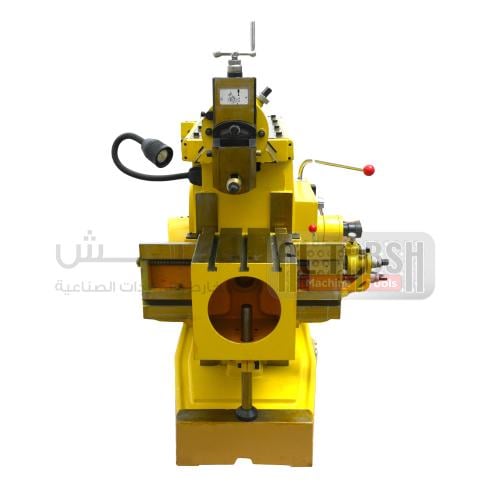

SHAPING MACHINE TAB-S6035A 380V

SHAPING MACHINE TAB-S6035A 380V

AL-TABSH / TAB-S6035A

The TAB-6035A Shaping Machine is designed for precise cutting and shaping operations in workshops. It features adjustable table travel, multiple ram stroke speeds, and a rotatable worktable for flexible machining performance.

Export Catalogue

SKU: SALLA-1050136892 Category:

The TAB-6035A Shaping Machine is designed for precise cutting and shaping operations in workshops. It features adjustable table travel, multiple ram stroke speeds, and a rotatable worktable for flexible machining performance.

Technical Specifications

SpecificationDetails
ModelTAB-6035A
Max. Cutting Length350 mm
Ram Bottom to Table Distance330 mm
Table Travel400 mm / Vertical: 270 mm
Max. Planer Bed Distance550 mm
Max. Ram Displacement170 mm
Worktable Angle±55° / ±90°
Turret Vertical Travel110 mm
Ram Strokes per Minute32, 50, 80, 125
Feed Amount0.18–0.84 mm
Motor Power1.5 kW
Carton Size1530 × 930 × 1370 mm
Net / Gross Weight1000 / 1200 kg
