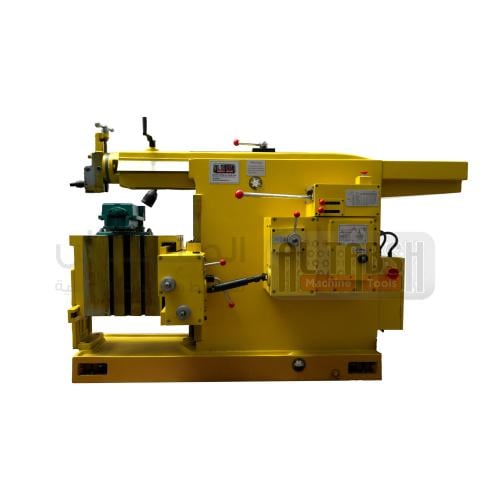

SHAPING MACHINE TAB-S6050 380V
AL-TABSH / TAB-S6050
The TAB-S6050 Shaping Machine is designed for accurate metal shaping and planning operations. It features adjustable worktable movement, multiple ram stroke speeds, and a swiveling tool post for flexible workshop machining.
The TAB-S6050 Shaping Machine is designed for accurate metal shaping and planning operations. It features adjustable worktable movement, multiple ram stroke speeds, and a swiveling tool post for flexible workshop machining.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-S6050 |
| Max. Shaping Length | 500 mm |
| Ram Bottom to Worktable Distance | 370 mm |
| Worktable Travel | 525 mm / Vertical: 270 mm |
| Worktable Size | 440 × 360 mm |
| Tool Post Travel | 120 mm |
| Ram Strokes per Minute | 14, 20, 28, 40, 56, 80 |
| Tool Post Rotation | ±60° |
| Max. Tool Handle Size | 20 × 30 mm |
| Mechanical Feed Range | H: 0.2–2.5 mm / V: 18 mm |
| Main Motor Power | 3 kW |
| Overall Size | 2160 × 1070 × 1194 mm |
| Net / Gross Weight | 1650 / 1760 kg |
