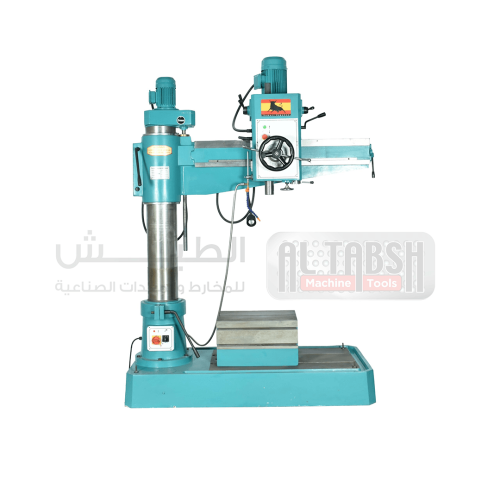

RADIAL DRILL SPRD4013 1.3M /40MM
SUMORI ESPANZA / SPRD4013
SPRD4013 radial drilling machine is an ideal universal machine with wide applications for processing medium and small parts in workshops. It’s designed for drilling, reaming, spot- facing, and tapping. With special tools even boring operation is available. This machine is one of the up-grade products featuring high performance and reliability, easy operation and Maintenance, simple construction, long servicing life, etc.
SPRD4013 radial drilling machine is an ideal universal machine with wide applications for processing medium and small parts in workshops. It’s designed for drilling, reaming, spot- facing, and tapping. With special tools even boring operation is available. This machine is one of the up-grade products featuring high performance and reliability, easy operation and Maintenance, simple construction, long servicing life, etc.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPRD4013 |
| Max. Drilling capacity steel/iron | 32/40mm |
| Centerline of spindle axis to column | 360-1300mm |
| Spindle taper | MT4 |
| Spindle travel | 200mm |
| Spindle speeds 6 | 42-1220 |
| Max. feed force permissible for the spindle | 5300 |
| Spindle feeds 3 | 0.10,0.16,0.25 |
| Distance from spindle nose to work table | 260-1050mm |
| Vertical traverse speed of the arm | 1.3m/min |
| Swivel of arm | 360 |
| Elevating motor power | 0.75kw |
| Power of Main motor | 2.2kw |
| Net weight | 1450kg |
