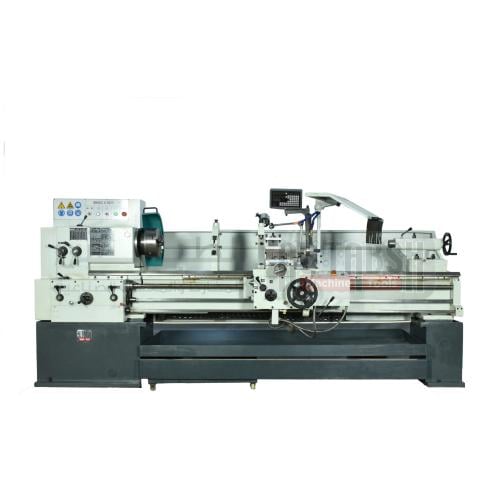

LATHE MACHINE TOS SN50C 500 X 2000 380V
TOS / SN50C
TOS SN50C Machines of outstanding performance designed for piece and small-lot production suitable also for mainte nance and repair divisions. TOS lathes are precise and reliable machines in wide range of versions and optional accessories.
TOS SN50C Machines of outstanding performance designed for piece and small-lot production suitable also for mainte nance and repair divisions. TOS lathes are precise and reliable machines in wide range of versions and optional accessories.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TOS SN50C |
| Front end of the spindle | DIN B6 |
| Spindle bore | 52 mm |
| Range of spindle revolutions | 22-2000 rpm |
| Supply voltage | 3 x 400V |
| Frequency | 60 Hz ± 2% |
| Main electric motor input | 5.5. kW |
| Lathe input | 6.6 kVA |
| Cross-slide lift | 300 mm |
| Tool slide lift | 140 mm |
| Longitudinal feed | 0.05-6.4 mm/r4ev-1 |
| Cross feed | 0.025-3.2 mm/rev.-1 |
| Longitudinal rapid feed | 3000 mm/min. |
| Cross rapid feed | 1500 mm/min. |
| Diameter of tailstock sleeve | 70 mm |
| Inside taper of tailstock sleeve | MT5 |
| Lift of tailstock sleeve | 180 mm |
| Net weight | 1940 kg |
| Dimensions | 3630 x 1100 x 1505 mm |
