LATHE MACHINE SUMORE SP2113 410X1500MM WITH TWO SPEED MOTOR 2.2/3.3KW 380V 60HZ
SUMORE / SP2113

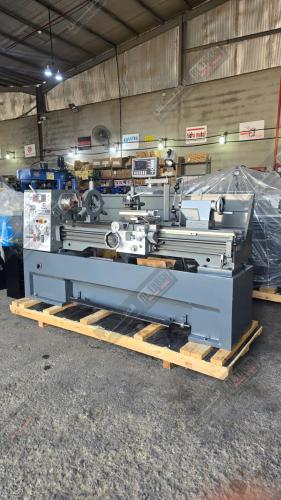

SUMORE SP2113 industrial metal lathe 410×1500 mm, designed for professional turning work in workshops and factories.
SUMORE SP2113 industrial metal lathe 410×1500 mm, designed for professional turning work in workshops and factories.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP2113 |
| Swing over bed | 410mm |
| Swing over cross slide | 255mm |
| Swing in gap diameter x width | 580(22")x190(7 1/2") |
| Height of center | 205mm (8") |
| Distance between center | 1000mm (40") /1500mm |
| Width of bed | 250mm |
| Cutting tool max section | 20x20mm (3/4"x3/4") |
| Total travel of cross slide | 210mm (8 1/2") |
| Total travel of top slide | 140mm (5 1/2") |
| Spindle bore | 52mm(2") |
| Spindle morse taper in bore | M.T .No.6 |
| Spindle speeds number | 16 |
| Spindle speed range | 45-1800RPM 30-550r/min |
| Threads imperial pitches | 2-72T.P.I(45Nos) |
| Threads metric pitches | 0.2-14mm(39Nos) |
| Longitudinal feeds imperial | 0.002"-0.067"/Rev(17Nos) |
| Longitudinal feeds metric | 0.05-1.77mm/Rev(17Nos) |
| Cross feeds imperial | 0.001"-0.0335"/Rev(17Nos) |
| Cross feeds metric | 0.0291-1.019mm/Rev(17Nos) |
| Range of module pitches | 0.3-3.5MP(18Nos) |
| Range of diameter pitches | 8-44DP(21Nos) |
| Tailstock quill diameter | 50mm(2") |
| Total travel in tailstock quill | 120mm(4 3/4") |
| Taper on tailstock quill | M.T.No.4 |
| Spindle drive motor | 4P/8P,3PH 3.3/2.2kw |
| Coolant pump motor | 4P,3PH 90W |
| 9 Packing size | 206(81")(256)×90(35 7/16")x164cm(64 9/16") |
| Net weight | 1300kg or 1350kg/1550kg or 1600kg |
| Gross weight | 1500kg or 1555kg/1750kg or 1755kg |
