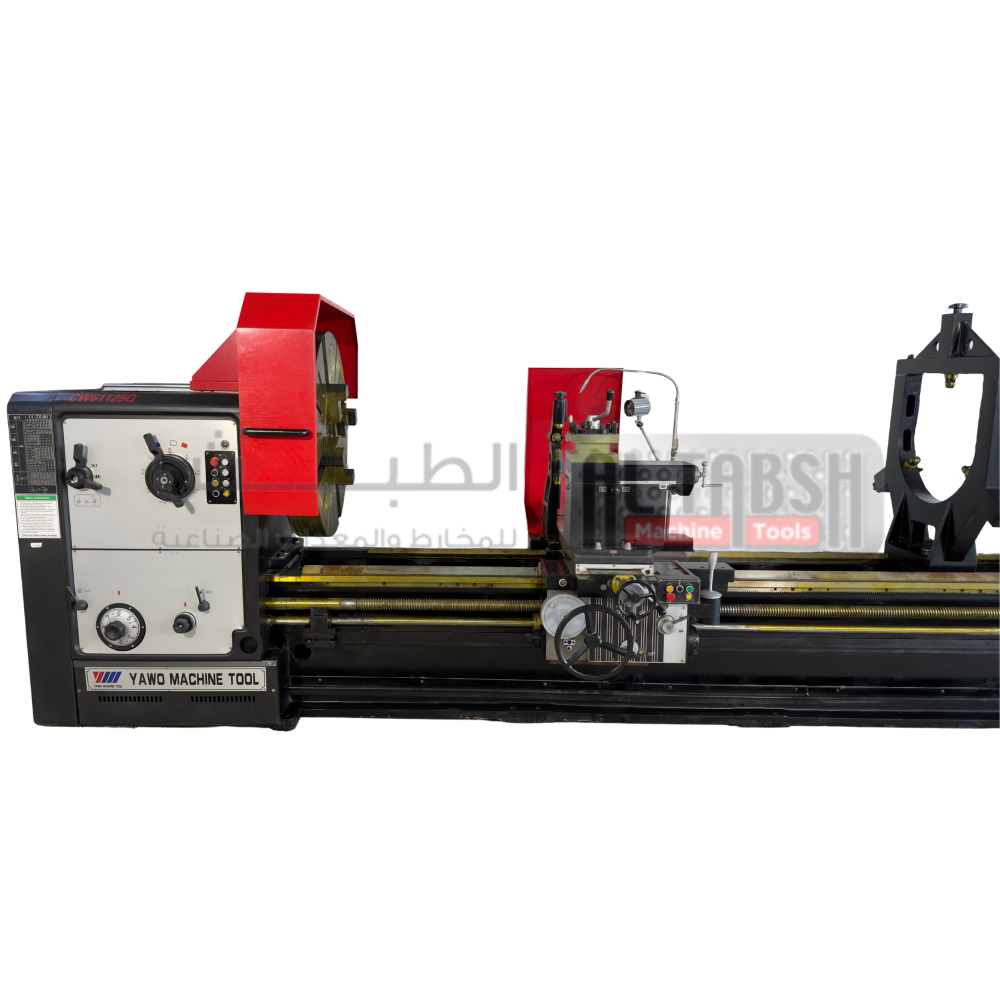

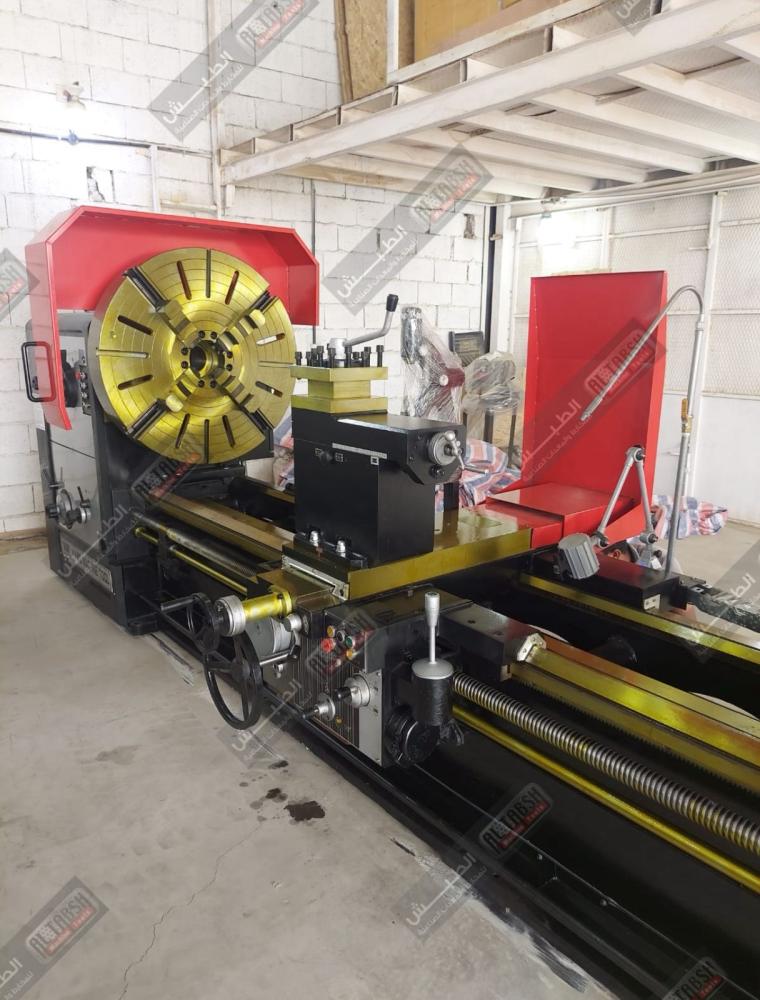

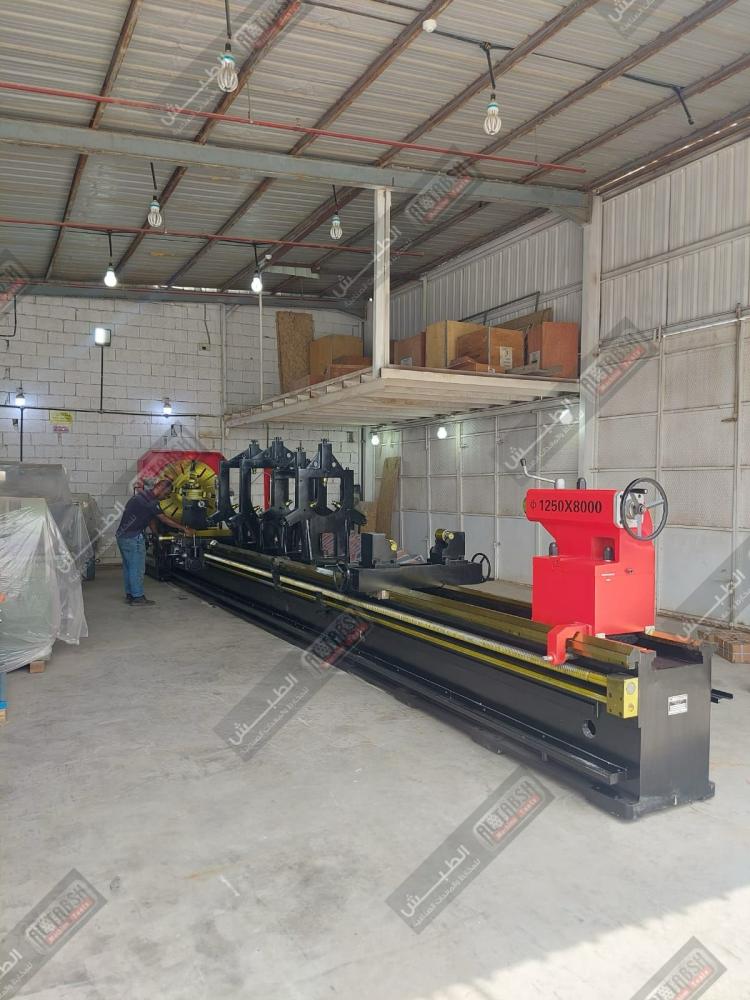

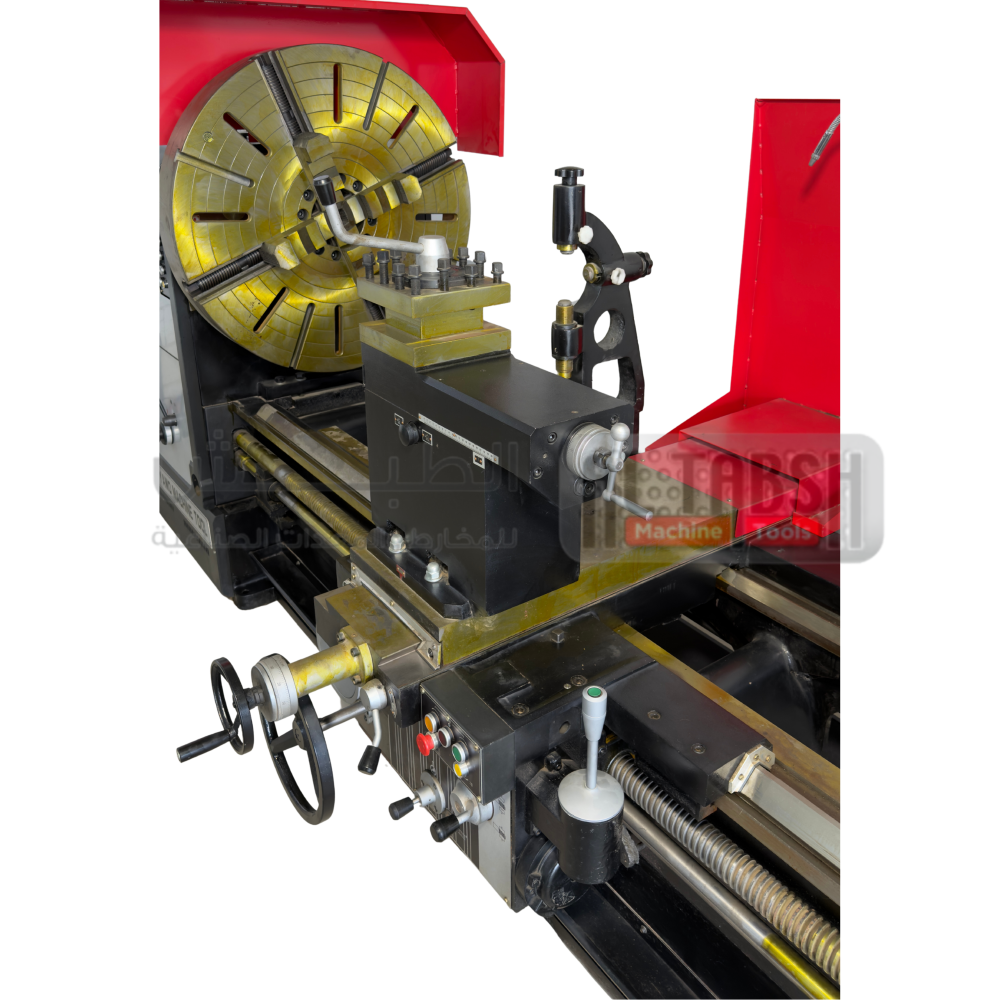

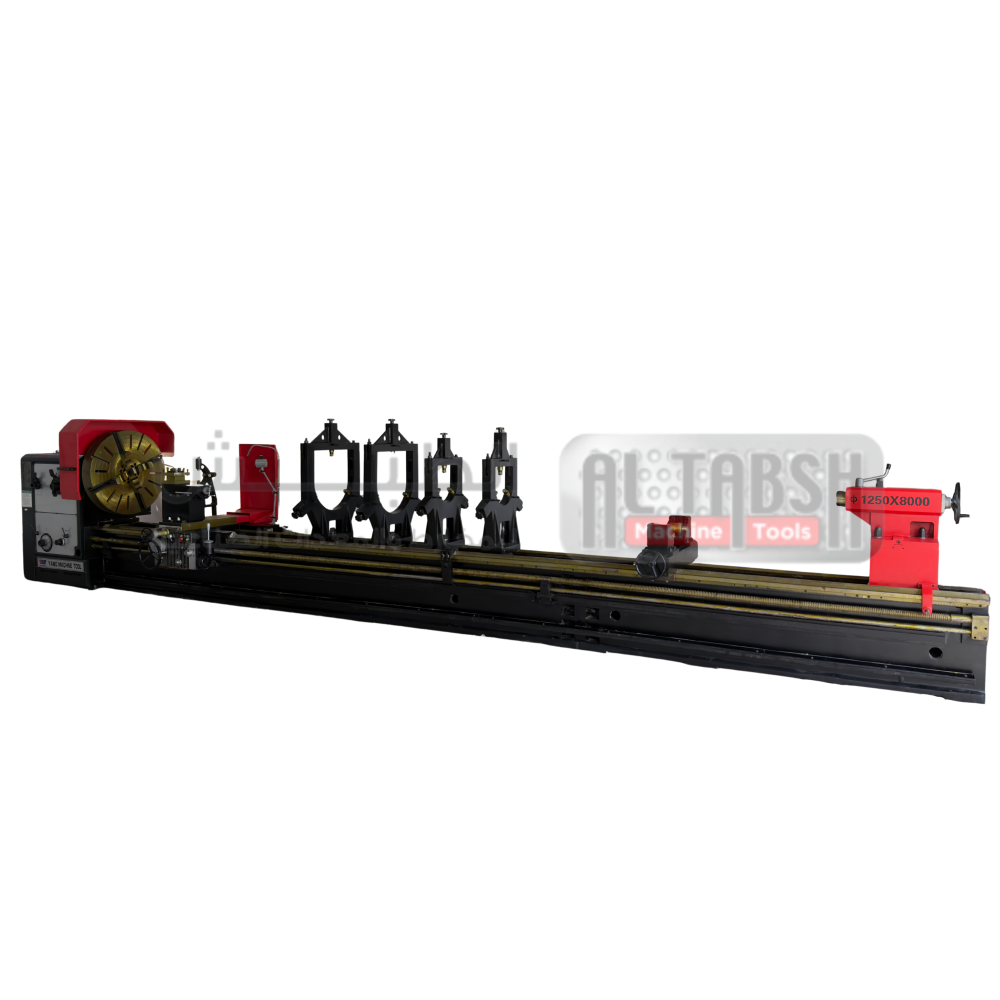

HEAVY DUTY HORIZONTAL LATHE MACHINE CW61125Q × 8000MM
ALTABSH / CW61125QX8000MM

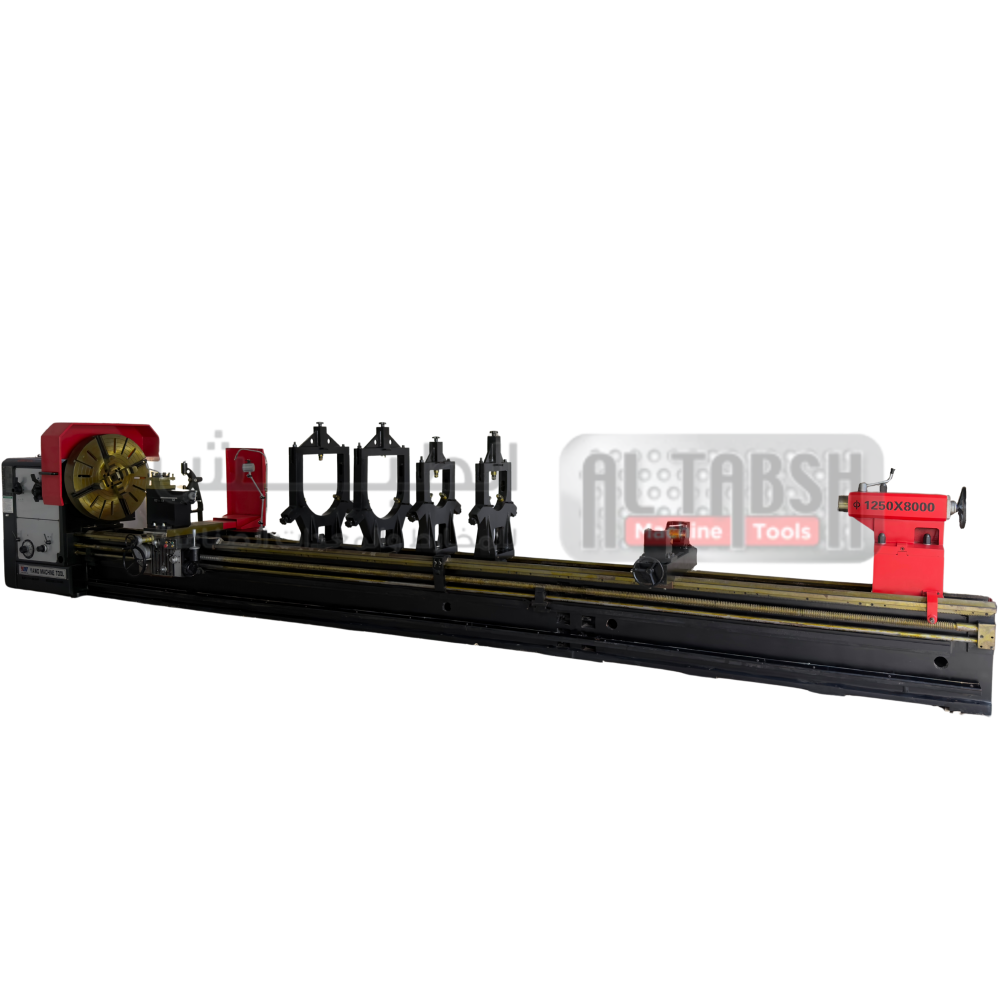

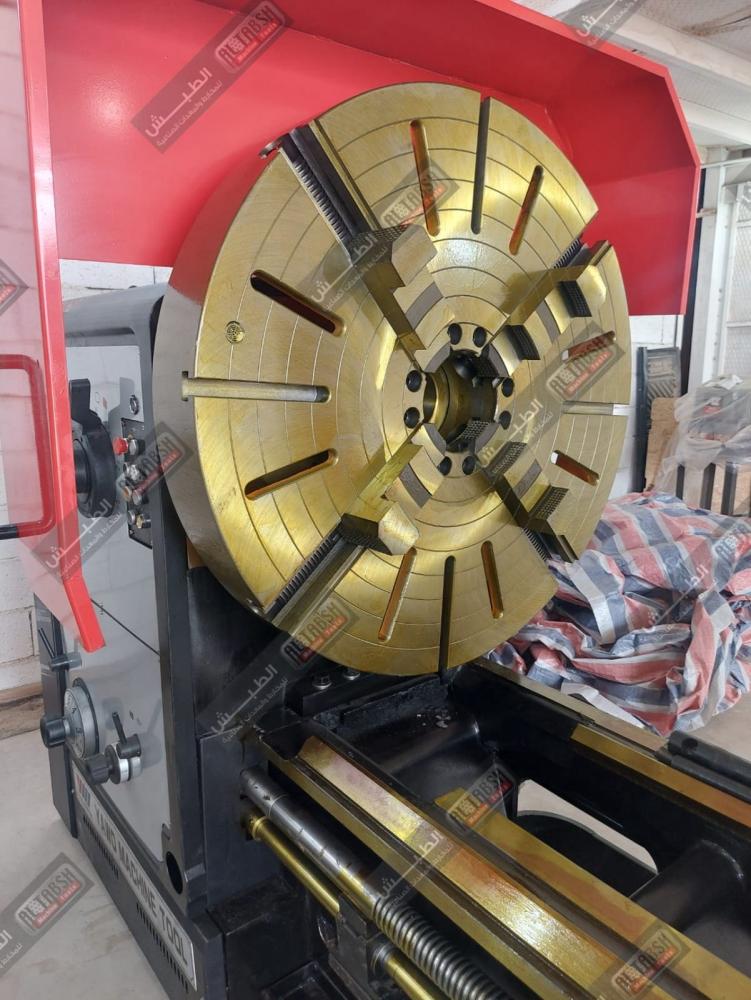

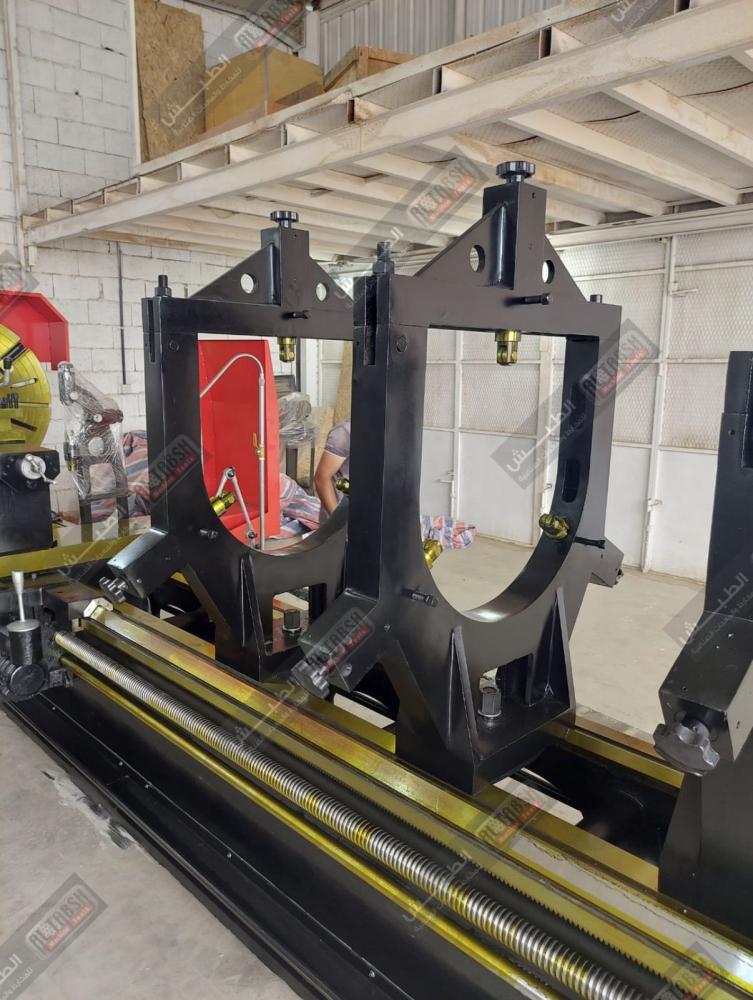

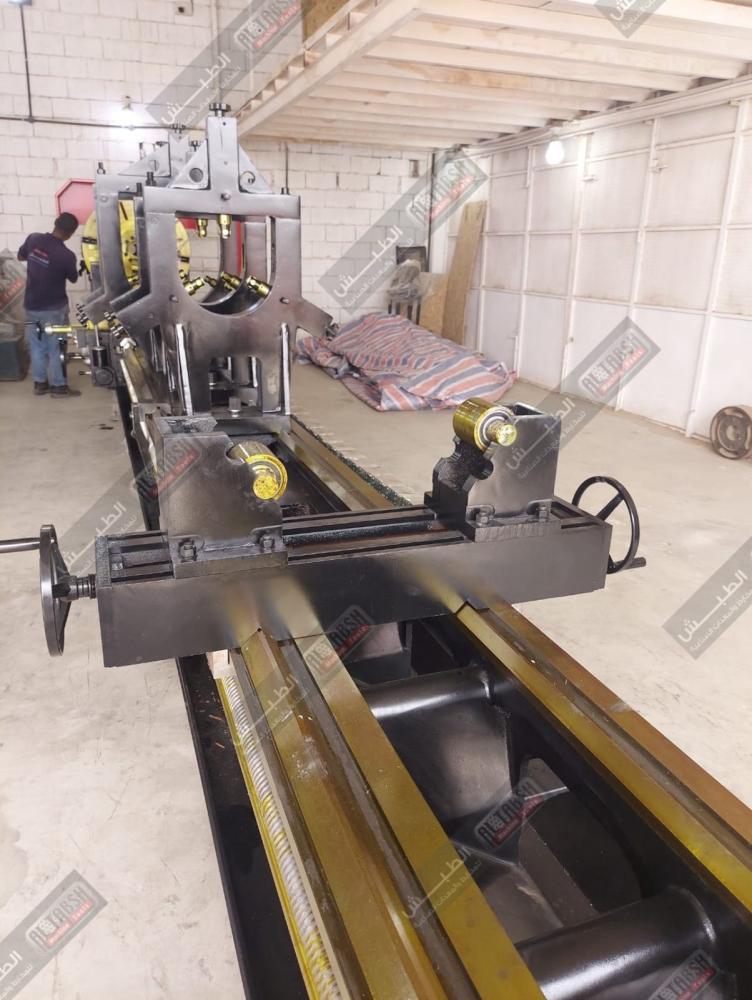

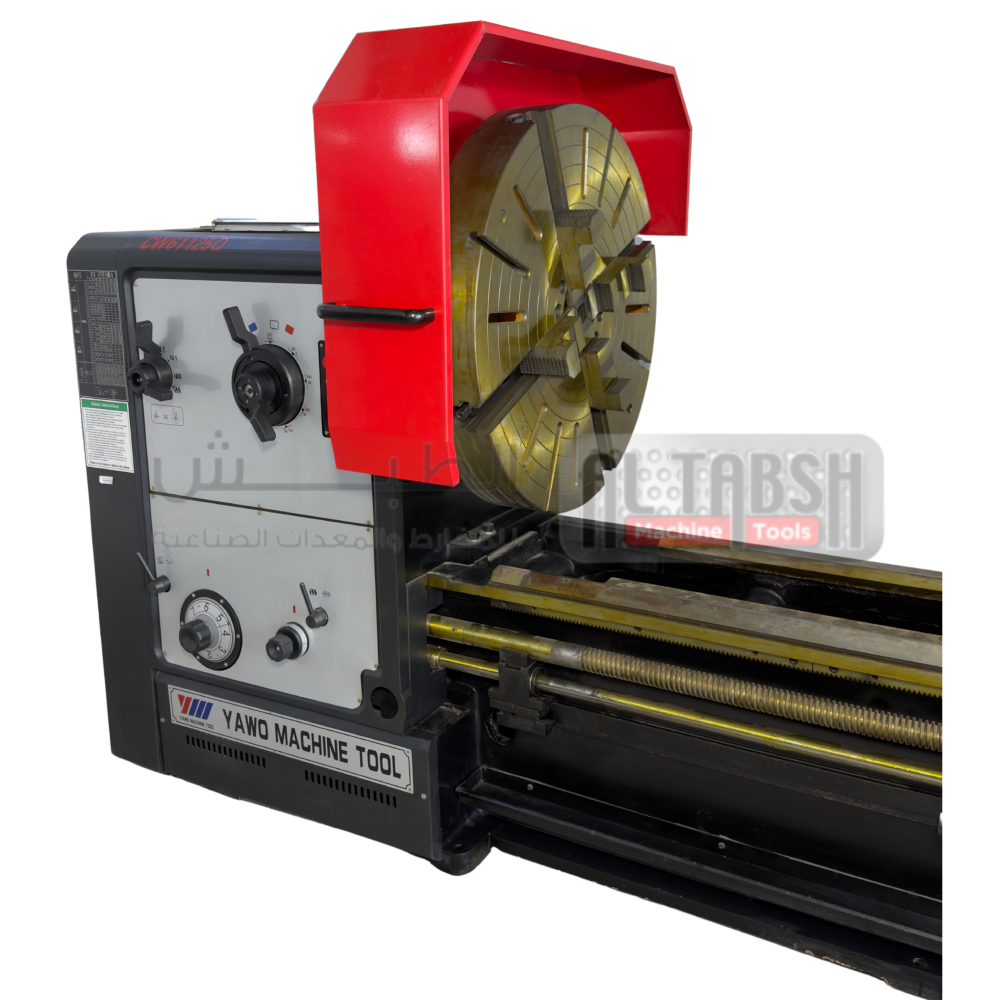

Heavy-duty horizontal lathe machine designed for large-scale industrial turning operations. Features max swing over bed of 1250 mm, 8000 mm distance between centers, and 2.5-ton load capacity, driven by a powerful 11 kW motor with MT6 tailstock, 18 spindle speeds, multiple threading options, and Schneider electrical components. Supplied with a 1000 mm 4-jaw chuck, steady and follow rests, tool post wrenches, coolant pump, and essential tooling for immediate use.
Heavy-duty horizontal lathe machine designed for large-scale industrial turning operations. Features max swing over bed of 1250 mm, 8000 mm distance between centers, and 2.5-ton load capacity, driven by a powerful 11 kW motor with MT6 tailstock, 18 spindle speeds, multiple threading options, and Schneider electrical components. Supplied with a 1000 mm 4-jaw chuck, steady and follow rests, tool post wrenches, coolant pump, and essential tooling for immediate use.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CW61125Q |
| Swing over bed | Φ1250 mm |
| Swing over carriage / cross slide | Φ920 mm |
| Max length of workpiece | 8000 mm |
| Spindle bore | 105 mm |
| Taper spindle hole front cone and top | Φ120, MT5 mm |
| Spindle speed range | 5.4–720, 18 steps r/min |
| Longitudinal feed steps & range | 64 kinds; 0.05–24.3 mm/r |
| Longitudinal feed range 1 | 0.1–1.52 mm/r |
| Longitudinal feed range 16:1 | 1.6–24.3 mm/r |
| Feed range via gear change | 0.06–0.76 mm/r |
| Transverse / longitudinal feed ratio | 1:2 |
| Rapid saddle travel speed | 4000 mm/min |
| Machine screw pitch | 12 (metric), 1/2″ mm |
| Metric thread range | 50 kinds, 1–240 mm |
| Inch thread range | 26 kinds; 14–1 t.p.i |
| Module thread range | 53 kinds; 0.5–120 mm |
| Diametral pitch thread range | 24 kinds; 28–1 DP |
| Cross travel of lower knife rest | 500 mm |
| Cross travel of upper knife rest | 200 mm |
| Sleeve travel | 250 mm |
| Tailstock sleeve taper | MT6 |
| Main motor power | 11 kW |
| Rapid move motor power | 1.1 kW |
| Coolant pump power | 0.9 kW |
| Guide rail width | 600 mm |
| Max load capacity | 2500 kg |
