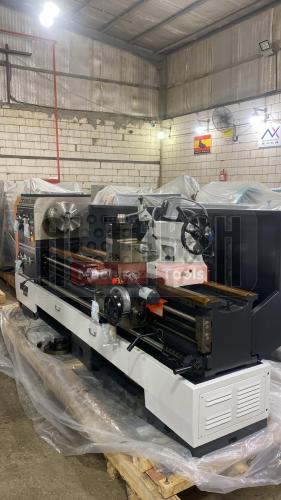

BOCHI CONVENTIONAL LATHE MACHINE CS6266C
BOCHI / CS6266C
Heavy‐duty Baoji CS6266C metal lathe engineered for advanced industrial workshops that require high power and enhanced safety, the motor power is 7.5kw.
Heavy‐duty Baoji CS6266C metal lathe engineered for advanced industrial workshops that require high power and enhanced safety, the motor power is 7.5kw.
Technical Specifications
| Specification | Details |
|---|---|
| Model | CS6266C |
| Max. Swing over bed | Φ660mm |
| Max swing in gap | Φ870mm |
| Effective length in gap | 240mm |
| Max swing over slide | Φ420mm |
| Max workpiece length | 1000/1500/2000/3000 mm |
| Spindle thru-hole | Φ105mm |
| Spindle nose | ISO 702/II No.8 cam-lock type |
| Spindle speed | 12 step 32-1600 r/min |
| Spindle motor | 7.5kw |
| Tailstock quill dia./travel | Φ75/150mm |
| TailstockTaper of center | MT5 |
| Tool station | 4/25X25 |
| Max X-axis travel | 310mm |
| Max Z-axis travel | 145m/min |
| X-axis feed | 65 sorts 0.063-2.52mm/r |
| Z-axis feed | 65 sorts 0.027-1.07mm/r |
| Metric thread | 22 sorts 1-14mm |
| Inch thread | 25 sorts 28-2T.P.I |
| Module thread | 18 sorts 0.5-7πmm |
| DP thread | 24 sorts 56-4 T.P.I π |
| Coolant pump motor | 0.06 kw |
| Machine length | 2632/3132/3632/4632mm |
| Machine width | 975mm |
| Machine height | 1270mm |
| Machine weight | 2200/2400/2600/3000kg |
