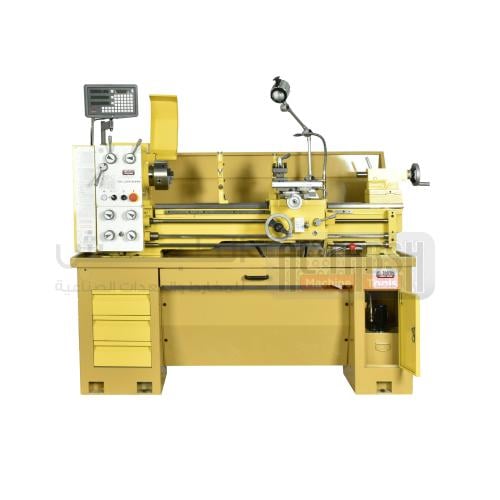

LATHE MACHINE TAB-L300 300 X 1000 WITH DRO 380V
AL-TABSH / TAB-L300
The TAB L-300 light lathe gets the job efficiently, and affordably. This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. for usage in the light industry small workshops and central maintenance workshops for companies. With a 300mm swing, 1000mm distance between centers, a wide range of speed feeds, and screw-cutting options, this lathe machine has an advantage over its competitors.
The TAB L-300 light lathe gets the job efficiently, and affordably. This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. for usage in the light industry small workshops and central maintenance workshops for companies. With a 300mm swing, 1000mm distance between centers, a wide range of speed feeds, and screw-cutting options, this lathe machine has an advantage over its competitors.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-L300 |
| Max. Swing over bed | 300mm |
| Max. Swing over cross slide | 180mm |
| Max. Swing over gap | 43mm |
| Distance between centers | 1000mm |
| Spindle bore diameter | 38mm |
| Taper of spindle bore | MT.5 |
| Range of spindle Speed | 65~1400 (65-1810) rpm |
| Range of Longitudinal feeds | 0.079~1.291mm/rev |
| Range of cross feeds | 0.017~0.276 mm/rev |
| Range of Metric threads | 0.4~7 mm |
| Range of inch threads | 4-60TPI |
| Max. Travel of tailstock quill | 100mm |
| Taper of tailstock quill bore | MT.3 |
| Power of main drive motor | 1.5kW |
| Packing size | 1940x750x1400mm |
| Net weight | 620 kg |
| Gross weight | 670 kg |
