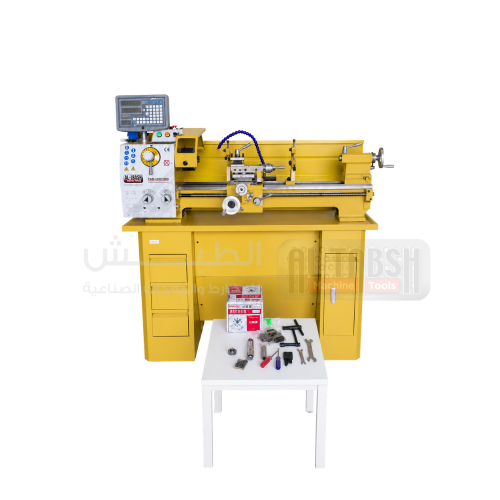

AL-TABSH BENCH LATHE MACHINE TAB L-280
AL-TABSH / TAB-L280
The TAB L-280 Bench lathe with DRO gets the job efficiently, and afford ably. This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. For usage in private workshops, institutions, individuals, and hobbies. With a 280mm swing, 610/815mm mm distance between centers, a wide range of speed feeds, and screw-cut ting options, this lathe machine has an advantage over its competitors.
The TAB L-280 Bench lathe with DRO gets the job efficiently, and afford ably. This customized lathe machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most small works easily and fast. For usage in private workshops, institutions, individuals, and hobbies. With a 280mm swing, 610/815mm mm distance between centers, a wide range of speed feeds, and screw-cut ting options, this lathe machine has an advantage over its competitors.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-L280 |
| Swing over bed | 280mm |
| Distance between centers | 815mm |
| MAX swing diameter over middle | 165mm |
| Spindle bore | 38mm |
| Headstock taper | MT5 |
| Y-Axis working travel | 160mm |
| X-Axis working travel of toolpost slide | 75mm |
| Modulus thread kinds on processing | 18mm |
| Modulus thread pitch on processing | 0.20-3.5mm |
| Inch thread pitch on processing | 34 kinds |
| Inch thread pitch on processing | 41/2~48 1/n” |
| Moulder thread kinds on processing | 16 kinds |
| Moulder thread pitch on processing | 0.2-1.75MP |
| Diametral thread kinds on processing | 24 kinds |
| Diametral thread pitch on processing | 16-120 /DP” |
| Longitudinal feed on spindle toolcarrier | 0.05-0.035mm/r |
| Cross feed on spindle toolcarrier | 0.025-0.18mm/r |
| Tailstock quill travel | 60mm |
| Tailstock taper | MT3 |
| Spindle speed step/range | 8/90-1800rpm |
| Electric motor | 750W |
| Net weight / Gross weight | 255/280kg |
| Overall dimension | 1310/1515x650x1200mm |
