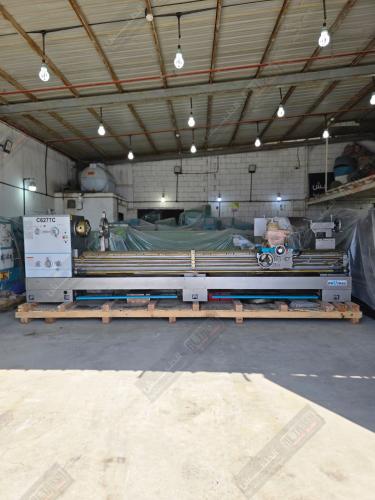

LATHE MACHINE MIUMAC BRAND, MODEL C6277C
MIUMAC / C6277Cx4000
Heavy‐duty industrial metal lathe from MIUMAC, model C6277C, engineered for demanding machining with high accuracy and reliability, the motor power is 7.5kw.
Heavy‐duty industrial metal lathe from MIUMAC, model C6277C, engineered for demanding machining with high accuracy and reliability, the motor power is 7.5kw.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C6277C |
| Max swing over bed | Φ770 mm |
| Max swing over carriage | Φ575 mm |
| Max swing over gap | Φ1050 mm |
| Distance between centers | 3000 / 4000 mm |
| Bed width | 405 mm |
| Spindle nose | D8 |
| Spindle bore | Φ105 mm |
| Taper bore | D1‐8 |
| Spindle speed steps | 12 |
| Spindle speed range | 36–1600 rpm |
| Longitudinal feeds | 0.063–2.52 mm/rev |
| Cross feeds | 0.027–1.07 mm/rev |
| Longitudinal rapid travel | 4500 mm/min |
| Cross rapid travel | 1900 mm/min |
| Metric threads | 1–14 mm (22 kinds) |
| Whitworth threads | 28–2 TPI (26 kinds) |
| Module threads | 0.5–7 M.P (18 kinds) |
| Diametral pitch threads | 56–4 DP (24 kinds) |
| Taper bore | MT5 |
| Max quill travel | 150 mm |
| Quill diameter | Φ75 mm |
| Tool shank size | 25×25 mm |
| Max travel of cross slide | 360 mm |
| Max travel of top slide | 145 mm |
| Main motor power | 7.5 kW |
| Overall dimensions (L×W×H) | 2500/3000/3500/4500 × 1100 × 1450 mm |
| Net weight | 3400–3600 kg (depending on length) |
