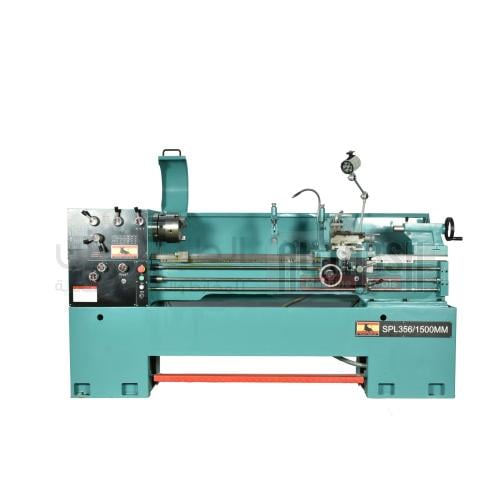

LATHE MACHINE SPL356 356 X 1500 380V
SUMORI ESPANZA / SPL356
Conventional lathe SPL356 by Sumori Espanza light‐duty metal lathe is designed for precision, educational, and small repair workshops, the motor power is 1.5kw.
Conventional lathe SPL356 by Sumori Espanza light‐duty metal lathe is designed for precision, educational, and small repair workshops, the motor power is 1.5kw.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPL356 |
| Max. Swing over bed | 356mm |
| Max swing over cross slide | 210mm |
| Max. Swing over gap | 508 mm |
| Effective length of gap | 180mm |
| Distance between centers | 1500mm |
| Width of bed | 260mm |
| Spindle bore | 52mm |
| Spindle nose | ISO- D4 |
| Spindle taper | MT5 |
| Spindle speed | (12 steps) 40-1800rpm |
| Range of longitudinal feed | 37kinds 0.043-0.653mm/rev |
| Range of cross feed | 37kinds 0.024-0.359mm/rev |
| Range of Metric thread | 37kinds 0.4-7mm/rev |
| Range of Imperial thread | 28kinds 4-56inch |
| Dia. of main screw | 22mm |
| Pitch of main screw | 4mm or 8T.P.I |
| Dia. of tailstock sleeve | 45mm |
| Taper of tailstock sleeve | MT3 |
| Max. travel of tailstock | 120mm |
| Main driver power | 1.5 kw |
| Coolant pump motor | 40W |
| Package size(LxWxH) | 190x75x150cm |
| Net weight / Gross weight | 1350/1650kg |
