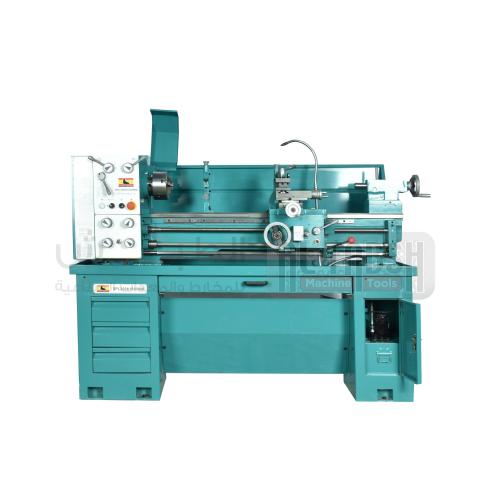

LATHE MACHINE SPL300 300 X 1000 380V
SUMORI ESPANZA / SPL300
SPL300 Light lathe this manual lathe machine is with swing 300mm for light industrial, the motor power is 1.5kw powerful.
SPL300 Light lathe this manual lathe machine is with swing 300mm for light industrial, the motor power is 1.5kw powerful.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPL300 |
| Max. Swing over bed | 300mm |
| Max. Swing over cross slide | 180mm |
| Max. Swing over gap | 430mm |
| Distance between centers | 1000mm |
| Spindle bore diameter | 38mm |
| Taper of spindle bore | MT.5 |
| Range of spindle Speed | 65~1400 (65-1810) rpm |
| Range of Longitudinal feeds | 0.079~1.291mm/rev |
| Range of cross feeds | 0.017~0.276 mm/rev |
| Range of Metric threads | 0.4~7 mm |
| Range of inch threads | 4-60TPI |
| Max. Travel of tailstock quill | 100mm |
| Taper of tailstock quill bore | MT.3 |
| Power of main drive motor | 1.5kW |
| Packing size | 1940x750x1400mm |
| Net weight | 620 kg |
| Gross weight | 670 kg |
