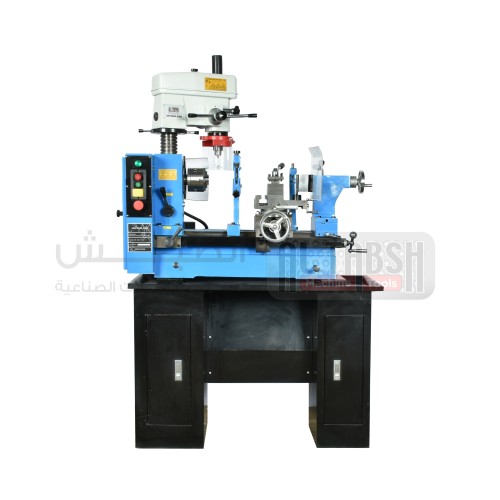

COMBINED LATHE MACHINE 3 IN 1 BL400 420 X 400 WITH TABLE
PAN SINO / BL400
The BL400 3-in-1 mini lathe, drilling, and milling machine combines multiple machining operations in one compact unit. It helps reduce floor space, handling time, and inventory while improving machining accuracy and efficiency. Designed for modern workshops, it is ideal for cutting, drilling, and milling small complex parts with reliable performance and energy-saving operation.
The BL400 3-in-1 mini lathe, drilling, and milling machine combines multiple machining operations in one compact unit. It helps reduce floor space, handling time, and inventory while improving machining accuracy and efficiency. Designed for modern workshops, it is ideal for cutting, drilling, and milling small complex parts with reliable performance and energy-saving operation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BL400 |
| Distance between centers | 400 mm |
| Swing over bed | 420 mm |
| Swing over cross slide | 380 mm |
| Taper of spindle bore | MT3 |
| Spindle bore | 20 mm |
| Number of spindle speeds | Variable |
| Range of spindle speeds | 7 Speeds 160-1360 rpm |
| Range of metric threads | 18 steps 0.2-3 mm |
| Range of inch threads | 27 Steps 8-120 T.P.I |
| Motor | 550 w |
| Top slide travel | 80 mm |
| Cross slide travel | 120 mm |
| Tailstock quill travel | 70 mm |
| Tailstock quill Taper | MT3 |
| Packing size | 970×580×965 mm |
| Net weight | 180 kg |
| Mill & Max.drilling dia | 15mm |
| Max.end milling capacity | 20mm |
| Max.face milling capacity | 63mm |
| Vertical travel | 220mm |
| Spindle travel | 85mm |
| Spindle speed | 14 Speeds 117-1300 rpm |
| Motor for (drill/mill) | 550w |
