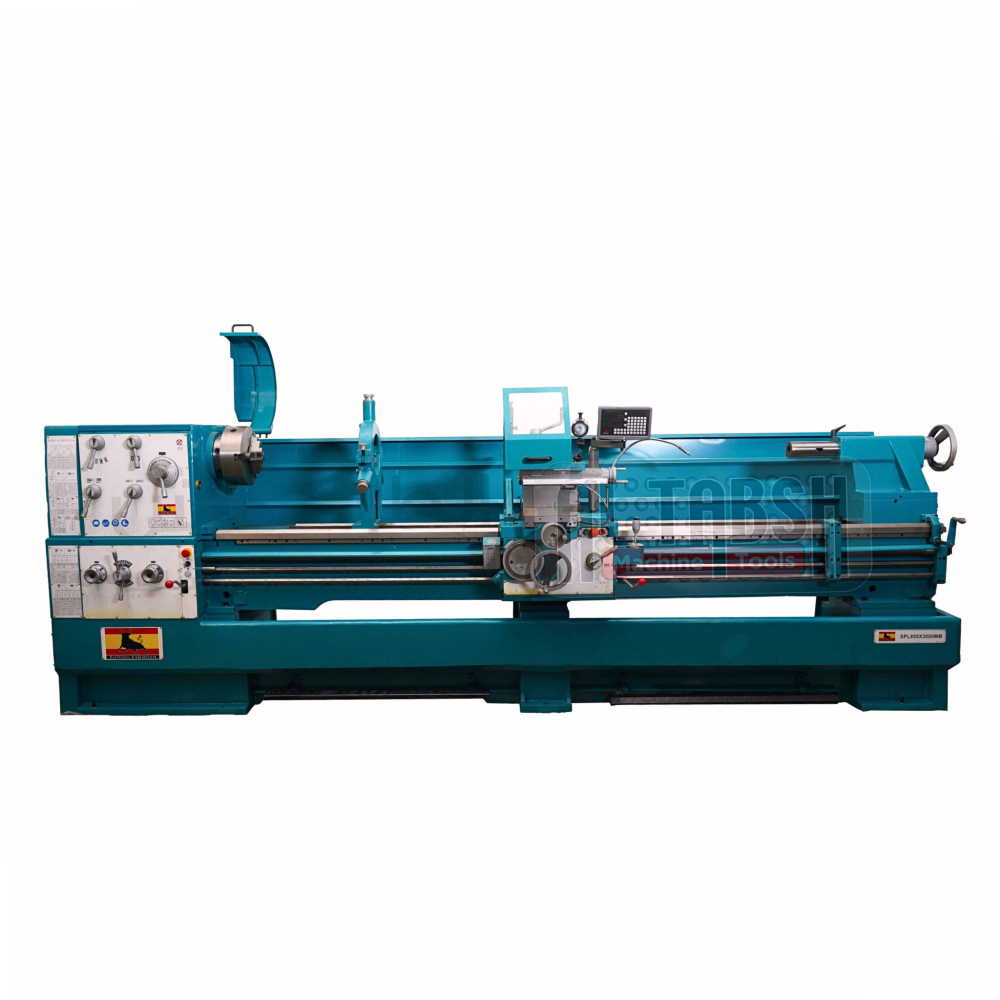

CONVENTIONAL LATHE MACHINE SPL800 × 3000MM
SUMORI ESPANZA / SPL800
Conventional lathe SPL800 by Sumori Espanza is a medium-industrial horizontal lathe with an 800 mm swing over bed and a 7.5 kW main motor. The 3000 mm configuration is built for heavy, accurate turning work, with a rigid bed, automatic feeds, a 105 mm spindle bore, and integrated coolant system.
Conventional lathe SPL800 by Sumori Espanza is a medium-industrial horizontal lathe with an 800 mm swing over bed and a 7.5 kW main motor. The 3000 mm configuration is built for heavy, accurate turning work, with a rigid bed, automatic feeds, a 105 mm spindle bore, and integrated coolant system.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPL800 |
| Swing over bed | 800mm |
| Swing over cross slide | 570mm |
| Swing in gap | 1035mm |
| Length of gap | 400 mm |
| Distance between center | 1500/2000/3000mm |
| Center height | 330mm |
| Width of bed | 400mm |
| Spindle hole | 105mm |
| Max. section of tool | 25x25mm |
| Max travel of cross slide | 368/420mm |
| Max. travel of compound rest | 230mm |
| Spindle bore | 105mm |
| Spindle nose | D1-8 |
| Taper of spindle bore | Φ113mm(1:20)/MT5 |
| Spindle speed step | 16 |
| Range of spindle speed | 26-1700rpm |
| Leadscrew pitch | T.P.I or Φ40mm x12mm |
| Inch threads range | 7/16-80T.P.I (54 kinds) |
| Metric threads range | 0.45-120mm (54 kinds) |
| Diamerical pitches range | 7/8-160DP (42 kinds) |
| Module pitches range | 0.25-60MP (46 kinds) |
| Tailstock sleeve taper/diameter/travel | MT5/90/235mm |
| Main drive motor | 7.5 KW (10HP) |
| Rapid traverse motor | 250W |
| Coolant pump motor | 0.09KW (1/8HP) |
| Cross feeds range in metric lead screw | 0.044-1.48/rev (25 kinds) |
| Longitudinal feeds range in metric lead screw | 0.022-0.74mm/rev (25 kinds) |
| Overall dimension (LxWxH) | 3207/3707/4707 x 1230 x 1600mm |
| Packing size (LxWxH) | 3270/3770/4770 x 1135 x 1840mm |
| Net weight | 3100/3400/3850kg |
| Gross weight | 3550/3900/4400kg |
