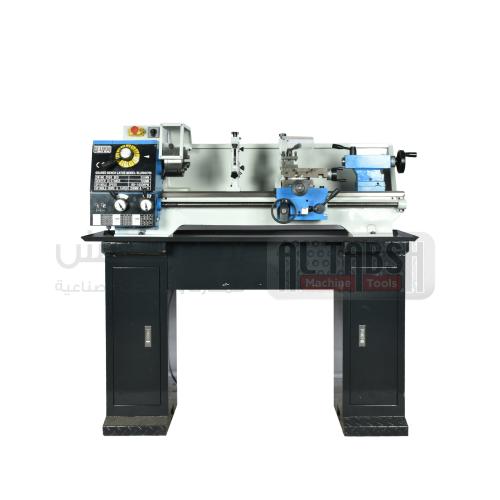

LATHE MACHINE BL250G/700 WITH TABLE
PAN SINO / BL250G
The BL250 bench lathe gets the job efficiently, and affordably. This customized lathe machine from Altabsh has a modern, tested design top installations, and safety regulations. Which can do most small works easily and fast. for usage in the light industry small workshops and central maintenance workshops for companies. With a 280mm swing, 700mm distance between centers, a wide range of speed feeds, and screw-cutting options.
The BL250 bench lathe gets the job efficiently, and affordably. This customized lathe machine from Altabsh has a modern, tested design top installations, and safety regulations. Which can do most small works easily and fast. for usage in the light industry small workshops and central maintenance workshops for companies. With a 280mm swing, 700mm distance between centers, a wide range of speed feeds, and screw-cutting options.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BL250 |
| Swing over bed | 250mm |
| Distance between Centers | 700mm |
| MAX swing diameter over middle carriage | 150mm |
| Spindle bore | 26mm |
| Headstock taper | MT4 |
| Y-Axis working travel | 130mm |
| X-Axis working travel of toolpost slide | 75mm |
| Modulus thread kinds on processing | 15mm |
| Modulus thread pitch on processing | 0.25-2.5mm |
| Longitudinal feed on spindle toolcarrier | 0.03-0.275mm/r |
| Cross feed on spindle toolcarrier | 0.015-0.137mm/r |
| Tailstock quill travel | 60mm |
| Tailstock taper | MT3 |
| Spindle speed step/range | 12/80-1600rpm |
| Electric motor | 750W |
| Net weight / Gross weight | 215/245kg |
| Overall dimension | 1400x650x1200mm |
