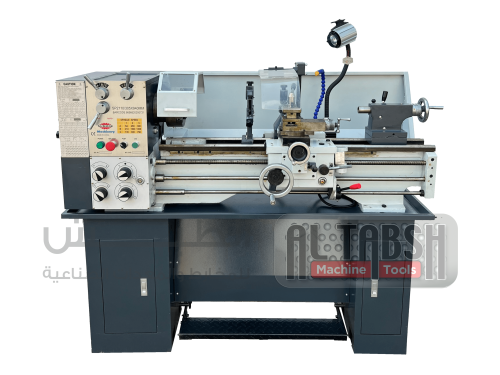

LATHE SP2110 SUMORE 305 X 940MM COOLANT LIGHT 380V
SUMORE / SP2110
The SP2110 Lathe is a versatile and affordable solution, ideal for light industrial and small workshop applications. This lathe is designed for precise turning and threading operations, making it suitable for small to medium-sized tasks.
The SP2110 Lathe is a versatile and affordable solution, ideal for light industrial and small workshop applications. This lathe is designed for precise turning and threading operations, making it suitable for small to medium-sized tasks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP2110 |
| Swing over bed | 305 mm |
| Swing over cross slide | 173 mm |
| Swing in gap | 440 mm |
| Distance between centers | 940 mm |
| Width of bed | 182 mm |
| Spindle taper | MT5 |
| Spindle bore | 38 mm |
| Spindle nose | D1-4 |
| Spindle speed | 9 steps 64-1500rpm |
| Metric threads: kinds/range | 26kinds 0.4-7mm |
| Imperial threads: kinds/range | 34kinds 4-56TPI |
| Longitudinal feeds | mm/rev or 0.002-0.0546/rev |
| Cross feeds | mm/rev or 0.00055-0.015/rev |
| Diameter of leadscrew | 22mm (7/8) |
| Pitch of leadscrew | 3mm or 8TPI |
| Saddle carriage travel | 810 mm |
| Cross slide travel | 150 mm |
| Top slide travel | 85 mm |
| Tailstock sleeve taper/diameter/travel | MT3/32mm/95mm |
| Main motor | 1.1kw |
| Coolant motor | 0.04kw |
| Machine packing size | 1780×760x760mm |
| Machine left stand packing size | 440×410×700mm |
| Machine left stand packing size | 370x410x700mm |
| Machine weight | 390/440kg |
| Stand weight | 70/75kg |
