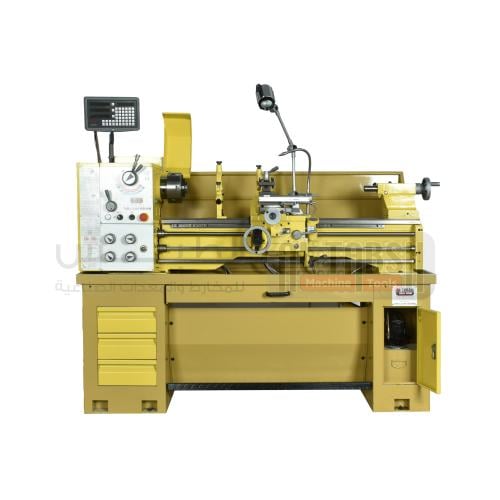

LATEH MACHINE TAB-L330 330 X 1000 WITH DRO 380V
AL-TABSH / TAB-L330
The TAB L-330 light lathe is an efficient and affordable machine designed for small workshops, light industry, and maintenance applications. With a 330 mm swing, 1000 mm distance between centers, and a wide range of speeds, feeds, and screw-cutting options, it delivers reliable performance for everyday machining tasks.
The TAB L-330 light lathe is an efficient and affordable machine designed for small workshops, light industry, and maintenance applications. With a 330 mm swing, 1000 mm distance between centers, and a wide range of speeds, feeds, and screw-cutting options, it delivers reliable performance for everyday machining tasks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-L330 |
| Swing over bed | 330mm |
| Swing over cross slide | 198mm |
| Swing in gap diameter | 476mm |
| Swing in length of gap | 210mm |
| Center height | 166mm |
| Distance between Center | 1000mm |
| Bed width | 187mm |
| Spindle bore | 38mm |
| Spindle nose | D1-4" or A2-4" |
| Taper in sleeve | NO.3 Morse |
| Speeds number | 8 |
| Speeds range | 35-2000r.p.m.(2 speed motor) |
| Cross slide travel | 118mm |
| Compound rest travel | 68mm |
| Lead screw thread | 8T.P.I. or 3mm pitch |
| Feed rod diameter | 19mm |
| Cutting tool max section | 16mm×16mm |
| Threads imperial pitches | 36 Nos.8-112 T.P.I. or (34 Nos.4-56T.P.I) |
| Threads metric pitches 28 | pitch or (26 Nos.0.4-7mm pitch) |
| Longitudinal feeds imperial 36 | (32 Nos.0.002-0.548"/Rev) |
| Longitudinal feeds metric 36 | (32 Nos.0.052-0.392mm/Rev) |
| Cross feeds imperial 36 | (32 Nos.0.007-0.0187"/Rev) |
| Cross feeds metric 36 | (32 Nos.0.014-0.380mm/Rev) |
| Quill diameter | 32mm(1-1/4") |
| Quill travel | 100mm(3-15/16") |
| Quill taper | NO.3 morse |
| main motor | 1.5kw |
| Packing size | 1950x750x1510mm |
| Net weight | 640kgs |
| Gross weight | 690kgs |
