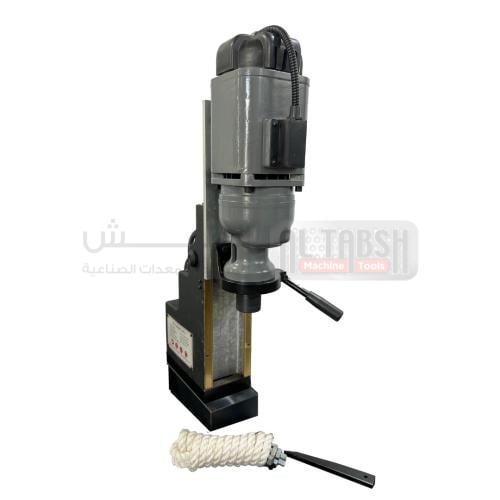

HY5131 MAGNETIC DRILL TWIST DRILL 24-49MM/BEST CORE DRILL 24- 55MM/TAPPING M10-M33 380V 60HZ 3PHASE
SUMORE / HY5131
HY5131 magnetic drill offers core drilling 20–55 mm, twist drilling 24–49 mm, and tapping M10– M33, with MT4 spindle, 50 mm drilling depth, 1900 W motor, and 125 rpm no‐load speed, running on 220/380 V three‐phase power. It features 22000 N magnetic holding force, ±45° swivel, 19 mm right‐angle shank arbor, minimum steel plate thickness 10 mm, 260 mm travel, 45.5/57.5 kg net/gross weight, and 56×25×60.5 cm dimensions, supplied in wood/carton packing for heavy industrial installation work.
HY5131 magnetic drill offers core drilling 20–55 mm, twist drilling 24–49 mm, and tapping M10– M33, with MT4 spindle, 50 mm drilling depth, 1900 W motor, and 125 rpm no‐load speed, running on 220/380 V three‐phase power. It features 22000 N magnetic holding force, ±45° swivel, 19 mm right‐angle shank arbor, minimum steel plate thickness 10 mm, 260 mm travel, 45.5/57.5 kg net/gross weight, and 56×25×60.5 cm dimensions, supplied in wood/carton packing for heavy industrial installation work.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HY5131 |
| Core drill capacity | 20–55 mm |
| Twist drill capacity | 24–49 mm |
| Tapping capacity | M10–M33 |
| Voltage/Frequency | 220 V or 380 V, 3‐phase |
| Power | 1900 W |
| No‐load speed 1 | 125 rpm |
| No‐load speed 2 | — |
| Max magnetic force | 22000 N |
| Rotation angle | 45° left and right |
| Core drill shank | 19 mm right‐angle shank |
| Minimum steel plate thickness | 10 mm |
| Stroke | 260 mm |
| Net/Gross weight | 45.5 / 57.5 kg |
| Machine size | 56 × 25 × 60.5 cm |
| Packing | Wooden / carton box |
