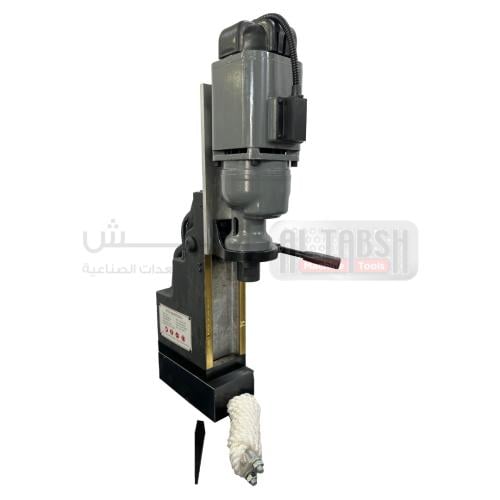

HY5130 MAGNETIC DRILL TWIST DRILL 24-38MM/BEST CORE DRILL 12- 55MM/TAPPING M10-M33 380V 60HZ 3PHASE
SUMORE / HY5130
HY5130 magnetic drill offers core drilling capacity 12–55 mm, twist drilling 24–38 mm, and tapping from M10 to M33, powered by an 1800 W motor on 220/380 V three‐phase supply with no‐load speed around 170 rpm. It delivers 21000 N magnetic holding force, ±45° swivel angle, 260 mm head travel, requires minimum 10 mm steel plate thickness, and has 45/57 kg net/gross weight with overall dimensions 56×25×60.5 cm, packed in wood/carton for industrial use.
HY5130 magnetic drill offers core drilling capacity 12–55 mm, twist drilling 24–38 mm, and tapping from M10 to M33, powered by an 1800 W motor on 220/380 V three‐phase supply with no‐load speed around 170 rpm. It delivers 21000 N magnetic holding force, ±45° swivel angle, 260 mm head travel, requires minimum 10 mm steel plate thickness, and has 45/57 kg net/gross weight with overall dimensions 56×25×60.5 cm, packed in wood/carton for industrial use.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HY5130 |
| Core drill capacity | 12–55 mm |
| Twist drill capacity | 24–38 mm |
| Tapping capacity | M10–M33 |
| Voltage/Frequency | 220 V or 380 V, 3‐phase |
| Power | 1800 W |
| No‐load speed 1 | 170 rpm |
| No‐load speed 2 | — |
| Max magnetic force | 21000 N |
| Rotation angle | 45° left and right |
| Core drill shank | 19 mm right‐angle shank |
| Minimum steel plate thickness | 10 mm |
| Stroke | 260 mm |
| Net/Gross weight | 45 / 57 kg |
| Machine size | 56 × 25 × 60.5 cm |
| Packing | Wooden / carton box |
