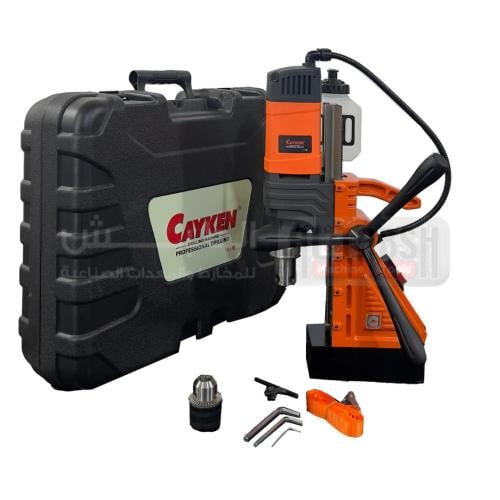

CAYKEN SCY-50WO MAGNETIC DRILL MACHINE 220V SINGLE PHASE
CAYKEN / SCY-50WO
CayKen SCY-50WO Magnetic Drill – lightweight industrial mag drill up to 50 mm. SCY‐50WO magnetic base drill offers core drilling capacity up to 50 mm and twist drilling up to 16 mm, powered by a 1650 W 220 V single‐phase motor with no‐load speed around 750–780 rpm and cutting depth about 40 mm. It provides approximately 16200 N magnetic holding force, stroke up to about 220 mm, 2.5 m power cable, and a light 11 kg magnesium‐alloy frame packed in a 52×16×43 cm plastic case, with overload protection and ergonomic design for on‐site metal fabrication work.
CayKen SCY-50WO Magnetic Drill – lightweight industrial mag drill up to 50 mm. SCY‐50WO magnetic base drill offers core drilling capacity up to 50 mm and twist drilling up to 16 mm, powered by a 1650 W 220 V single‐phase motor with no‐load speed around 750–780 rpm and cutting depth about 40 mm. It provides approximately 16200 N magnetic holding force, stroke up to about 220 mm, 2.5 m power cable, and a light 11 kg magnesium‐alloy frame packed in a 52×16×43 cm plastic case, with overload protection and ergonomic design for on‐site metal fabrication work.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SCY-50WO |
| Core drill capacity | 50 mm |
| Twist drill capacity | 16 mm |
| Tapping capacity | M18 |
| Voltage/Frequency | 220V/60HZ single phase |
| Power | 1650 W |
| No-load speed(1) | 780 rpm |
| Max magnetic force | 16200 N |
| Cutting depth | 40 mm |
| Cable length | 2.5M |
| Stroke | 220 mm |
| Net/Gross weight | 11/15 kg |
| Machine size | 52 × 18 × 43 cm |
| Packing | Plastic box |
