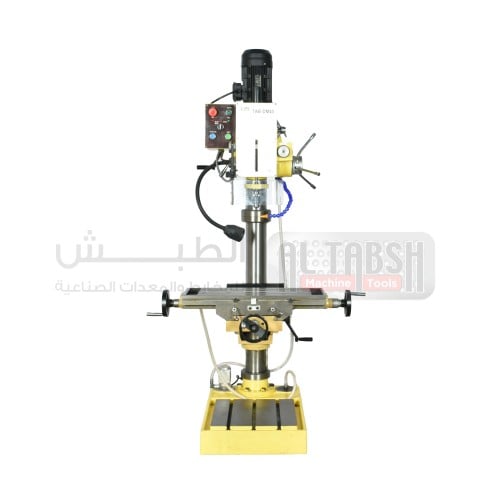

DRILLING MILLING MACHINE TAB-DM40 380V
AL-TABSH / TAB-DM40
The TAB-DM40 Drilling Milling 40mm gets the job efficiently, and affordably. This customized Drilling Milling machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most work easily and fast. For usage in the industry workshops and central maintenance workshops for companies. With a wide range of speed feeds, this milling drilling machine has an advantage over its competitors.
The TAB-DM40 Drilling Milling 40mm gets the job efficiently, and affordably. This customized Drilling Milling machine from Altabsh has a modern, tested design, top installations, and safety regulations. Which can do most work easily and fast. For usage in the industry workshops and central maintenance workshops for companies. With a wide range of speed feeds, this milling drilling machine has an advantage over its competitors.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-DM40 |
| Max drilling dia | 40mm |
| Spindle taper | M.T.4 |
| Spindle travel | 130mm |
| Step of speed | 6 |
| Range of spindle speed 60Hz | 80-1250 rpm/95-1500rpm |
| Step of spindle auto-feeding | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r |
| Min. distance from spindle axis to column | 290mm |
| Max. distance from spindle nose to | 700mm |
| Max. distance from spindle nose to stand | 1125mm |
| Max. travel of headstock | 250mm |
| Swivel angle of headstock(horizontal) | 360° |
| Max. travel of worktable bracket | 600mm |
| Table size | 730×210mm |
| Size of stand worktable of availability | 417×416mm |
| Forward and afterward travel of worktable | 205mm |
| Left and right travel of worktable | 500mm |
| Vertical travel of worktable | 570mm |
| Motor Power | 1.1kw |
| Speed of motor | 1400rpm |
| Coolant pump power | 0.04kw |
| Net weight / Gross weight | 442/502kg |
| Packing size | 1850x750x1000mm |
