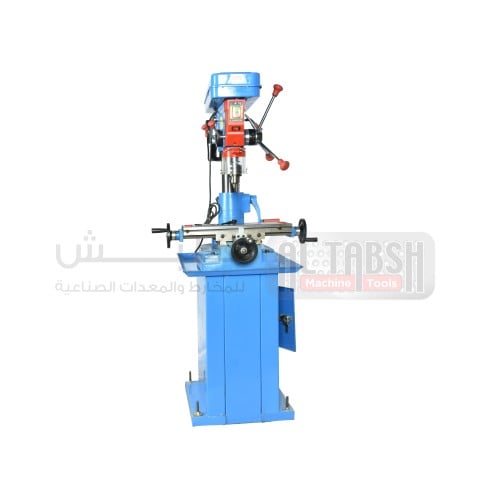

DRILLING MILLING MACHINE ZX7016 TABLE SIZE 420 X 152MM
/ ZX7016
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZX7016 |
| Max. Drilling capacity | 16mm |
| Max. Face mill capacity | 40mm |
| Diameter of vertical milling | 10mm |
| Spindle travel | 80mm |
| Distance spindle axis to column generating line | 182mm |
| Max. Distance spindle nose to table | 360mm |
| Spindle taper | MT2 |
| Spindle speeds range | 320~3300 rpm |
| Spindle speeds series | 12 |
| Dimension of worktable surface | 420mm x 152mm |
| Table travel | 230mm x 120mm |
| Overall height | 900mm |
| Motor output | 550 Watts |
| Net weight | 80kg |
