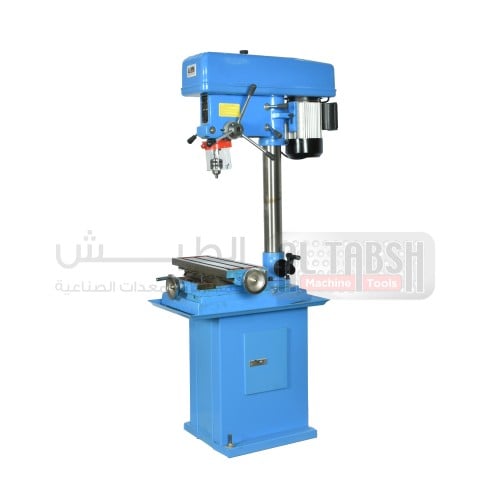

DRILLING MILLING MACHINE ZX7025 TABLE SIZE 555 X 195MM
/ ZX7025
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.
Technical Specifications
| Specification | Details |
|---|---|
| Model | ZX7025 |
| Max. drilling capacity | 25mm |
| Width of face milling | 63mm |
| Diameter of vertical milling | 13mm |
| Spindle travel | 90mm |
| Distance spindle axis to column surface | 202mm |
| Max. distance spindle nose to worktable | 380mm |
| Spindle taper | MT3 |
| Spindle speeds range | 100-2150rpm |
| Spindle speeds | 12 |
| Dimension of table | 585×190mm |
| Travel of worktable | 370×145mm |
| Overall height | 930mm |
| Headstock travel | 300mm |
| Motor | 750w |
| Gross weight / Net weight | 250/220kgs |
| Ship measurement | 76×77×103cm |
