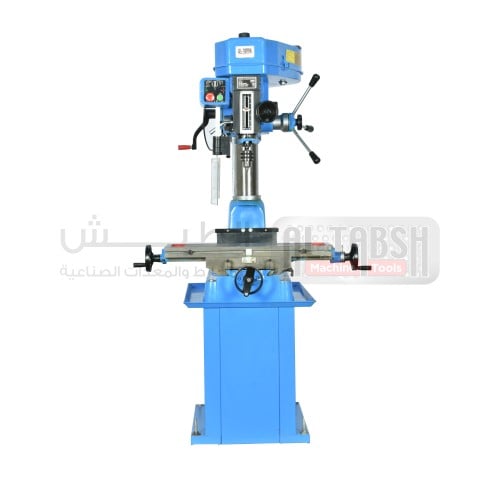

DRILLING MILLING MACHINE ZX7032 TABLE SIZE 730 X 210MM

DRILLING MILLING MACHINE ZX7032 TABLE SIZE 730 X 210MM

/ ZX7032

Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.

Export Catalogue

SKU: SALLA-1597968386 Category:

Widely used in single or batch is machinery manufacturing industry; instrument; building decoration and repair department.

Technical Specifications

SpecificationDetails
ModelZX7032
Max. Drilling capacity31.5mm
Max. face mill capacity80mm
Diameter of vertical milling22mm
Spindle travel130mm
Distance spindle axis to column generating line202mm
Max. Distance spindle nose to table460mm
Spindle taperMT3
Spindle speeds range100~2150r/min
Spindle speeds series12
Dimension of worktable surface730x210mm
Table travel450×170mm
Overall height1100mm
Main motorThree-phase:1500w
Gross weight / Net weight285/250Kg
Packing dimension97×77×124cm
