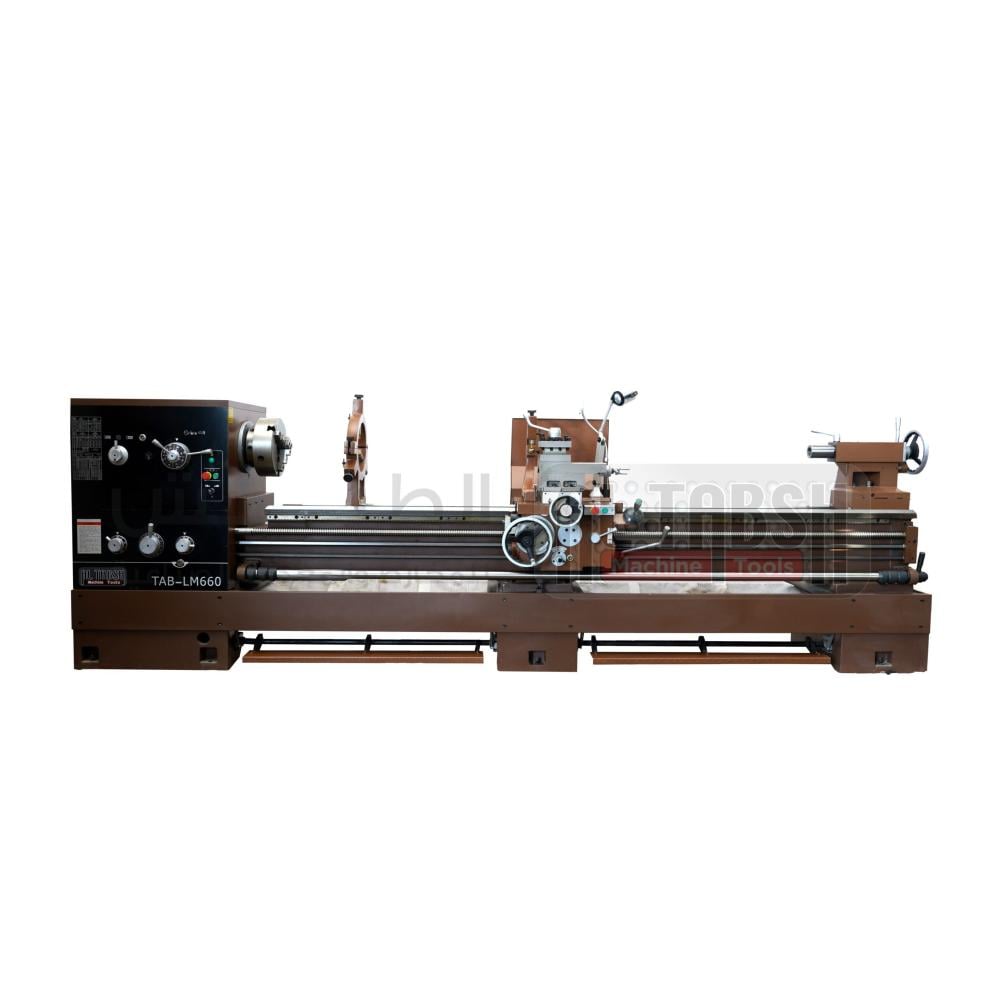

CONVENTIONAL LATHE MACHINE TAB-LM660
AL-TABSH / TAB-LM660
TAB-LM660 horizontal lathe by Al-Tabsh is a medium-industrial machine with a 660 mm swing over bed and a 7.5 kW main motor. It is available in multiple center distances up to 3000 mm and combines a rigid 405 mm bed, 105 mm spindle bore, 12 spindle speeds, and rapid longitudinal and cross travel for dependable production work.
TAB-LM660 horizontal lathe by Al-Tabsh is a medium-industrial machine with a 660 mm swing over bed and a 7.5 kW main motor. It is available in multiple center distances up to 3000 mm and combines a rigid 405 mm bed, 105 mm spindle bore, 12 spindle speeds, and rapid longitudinal and cross travel for dependable production work.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-LM770 |
| Max. swing over bed | Φ660mm |
| Max. swing over carriage | Φ575mm |
| Max. swing over gap | Φ1050mm |
| Bed width | 405mm |
| Effective length of gap | 230mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Max turning length | 830/1330/1830/2830mm |
| Spindle nose | D8 |
| Spindle bore | Φ105mm |
| Taper bore of spindle | Φ113mm 1:20 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 36-1600rpm |
| Range of longitudinal feeds | 0.063-2.52 (0.023"-0.937") mm |
| Range of cross feeds | 0.027-1.07 (0.010"-0.404") mm |
| Rapid longitudinal travel | 4500mm/min |
| Rapid cross travel | 1900mm/min |
| Metric pitch threads | 1-14mm / 22 |
| Whit-worth threads | 0.5-7MP / 18 |
| Module threads | 56-4DP / 24 |
| D.P. Threads / Tailstock taper bore | M.T.NO.5 |
| Tailstock max. travel | 150mm (5-29/32") |
| Tailstock external diameter | Φ75mm (2-61/64") |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 360mm |
| Max. travel of top slide | 145mm |
| Main motor power | 7.5kW |
| Overall dimension (LxWxH) | 2500/3000/3500/4500 × 1100 × 1450mm |
| Net weight | 3000/3200/3400/3900kg |
