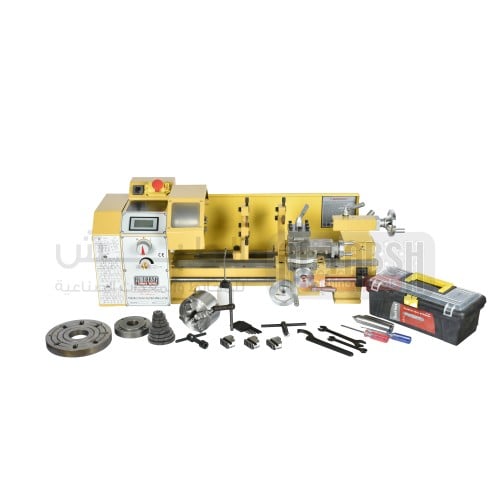

SUPER MINI LATHE TAB-ML210

AL-TABSH / TAB-ML210

Sumore mini-Lathe SP2102 has all basic characteristics compared to normal larger gear head lathe, it has unique advan tages, such as smaller size, lighter weight, lower noise, and so on. Its relatively simpler structure also remains in full rigid and high-strength hardened steel base construction. furthermore, full-scale accessories are provided for each Sumore Bench Lathe who still be able to carry on turning, drilling, boring, knurling, and threads processes, which also means it can be widely introduced into small metal/nonmetal workpieces machining during family metal work, technical school education or scientific facilities research

Export Catalogue

SKU: SALLA-557379291 Category:

Sumore mini-Lathe SP2102 has all basic characteristics compared to normal larger gear head lathe, it has unique advan tages, such as smaller size, lighter weight, lower noise, and so on. Its relatively simpler structure also remains in full rigid and high-strength hardened steel base construction. furthermore, full-scale accessories are provided for each Sumore Bench Lathe who still be able to carry on turning, drilling, boring, knurling, and threads processes, which also means it can be widely introduced into small metal/nonmetal workpieces machining during family metal work, technical school education or scientific facilities research

Technical Specifications

Specification Details
Model TAB-ML210
Distance between centers 400mm
Swing over bed 210mm
Swing over cross slide 100mm
Spindle taper MT3
Tailstock taper MT2
Chuck diameter 100mm
Spindle bore 21mm
Cross slide travel 75mm
Tool slide travel 55mm
Range of metric threads 0.5-3.0mm
Range of imperial threads 8-44TPI
Spindle accuracy 0.01mm
Spindle speed 50-2500
Power of motor 600w Brushless
Voltage / Frequency 220V/60Hz
Net weight 70Kg
Gross weight 75Kg
Packing size 840× 390× 470mm
