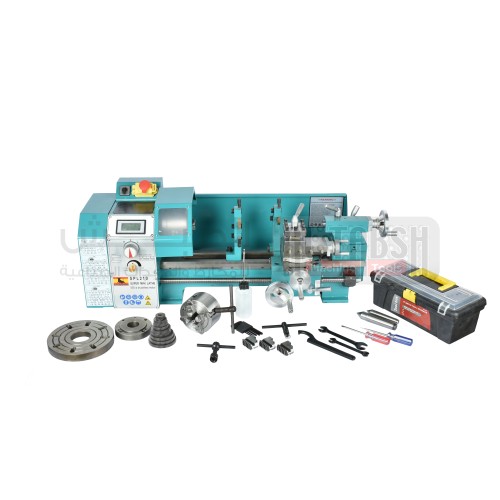

SUPER MINI LATHE SPL210
SUMORI ESPANZA / SPL210
Sumori Espanza mini-Lathe SPL210 has all basic charac teristics compared to normal larger gear head lathe, it has unique advantages, such as smaller size, lighter weight, lower noise, and so on. Its relatively simpler structure also remains in full rigid and high-strength hardened steel base construction. Furthermore, full-scale accessories are provided for each Sumori Espanza mini- Lathe who still be able to carry on turning, drilling, boring, knurling, and threads processes, which also means it can be widely introduced into small metal/nonmetal workpieces machining during family metal work, technical school education or scientific facilities
Sumori Espanza mini-Lathe SPL210 has all basic charac teristics compared to normal larger gear head lathe, it has unique advantages, such as smaller size, lighter weight, lower noise, and so on. Its relatively simpler structure also remains in full rigid and high-strength hardened steel base construction. Furthermore, full-scale accessories are provided for each Sumori Espanza mini- Lathe who still be able to carry on turning, drilling, boring, knurling, and threads processes, which also means it can be widely introduced into small metal/nonmetal workpieces machining during family metal work, technical school education or scientific facilities
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPL210 |
| Distance between centers | 400mm |
| Swing over bed | 210mm |
| Swing over cross slide | 100mm |
| Spindle taper | MT3 |
| Tailstock taper | MT2 |
| Chuck diameter | 100mm |
| Spindle bore | 21mm |
| Cross slide travel | 75mm |
| Tool slide travel | 55mm |
| Range of metric threads | 0.5-3.0mm |
| Range of imperial threads | 8-44TPI |
| Spindle accuracy | 0.01mm |
| Spindle speed | 50-2500 |
| Power of motor | 600w Brushless |
| Voltage / Frequency | 220V/60Hz |
| Net weight | 70Kg |
| Gross weight | 75Kg |
| Packing size | 840× 390× 470mm |
