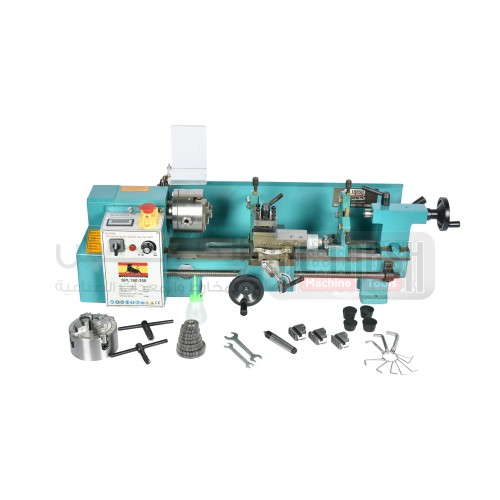

MINI LATHE SPL180 X 350

SUMORI ESPANZA / SPL180

Sumori Espanza mini-Lathe SPL180 has all basic charac teristics compared to normal larger gear head lathe, it has unique advantages, such as smaller size, lighter weight, lower noise, and so on. Its relatively simpler structure also remains in full rigid and high-strength hardened steel base construction. Furthermore, full-scale accessories are provided for each Sumori Espanza mini- Lathe who still be able to carry on turning, drilling, boring, knurling, and threads processes, which also means it can be widely introduced into small metal/nonmetal workpieces machining during family metal work, technical school education or scientific facilities

Export Catalogue

SKU: SALLA-732529112 Category:

Sumori Espanza mini-Lathe SPL180 has all basic charac teristics compared to normal larger gear head lathe, it has unique advantages, such as smaller size, lighter weight, lower noise, and so on. Its relatively simpler structure also remains in full rigid and high-strength hardened steel base construction. Furthermore, full-scale accessories are provided for each Sumori Espanza mini- Lathe who still be able to carry on turning, drilling, boring, knurling, and threads processes, which also means it can be widely introduced into small metal/nonmetal workpieces machining during family metal work, technical school education or scientific facilities

Technical Specifications

SpecificationDetails
ModelSPL180
Distance between centers350mm
Swing over bed180mm
Swing over cross slide100mm
Spindle taperMT3
Tailstock taperMT2
Chuck diameter100mm
Spindle bore21mm
Cross slide travel65mm
Tool slide travel35mm
Range of metric threads0.4-2.0mm
Range of imperial threads12-52 TPI
Spindle accuracy0.01mm
Spindle speed50-1100/100-2500 r.p.m
Power of motor550W BRUSHLESS
Voltage / Frequency220V/60Hz
Net weight40Kg
Gross weight45Kg
Packing size800x370x420mm
