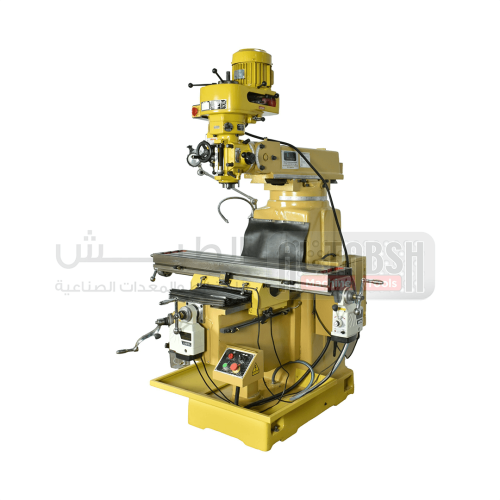

MILLING MACHINE TAB-KTM6325 TABLE SIZE 254 X 1270MM 380V
AL-TABSH / TAB-KTM6325
TAB-KTM6325 milling machine is one of our most economic and durable milling machine.
TAB-KTM6325 milling machine is one of our most economic and durable milling machine.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-KTM6325 |
| Table size | 254x1270mm |
| Longitudinal travel | 850mm |
| Cross travel | 400mm |
| Vertical travel | 420mm |
| T-slot no. and size | 3×16 |
| Ram travel | 470mm |
| Distance from spindle nose to table | 0~420mm |
| Spindle hole taper | R8/ISO30/ISO40 |
| Spindle travel | 127mm |
| Main motor | 2.25Kw or 3.75Kw |
| Diameter of quill | 95mm |
| Distance from spindle to table | 90~370mm |
| Distance from horizontal spindle to table | 0~280mm |
| Distance from spindle to column | 200~700mm |
| Spindle speeds(16 step)80~5440 rpm(V) | 40~1300rpm(H) |
| Feeding of quill | (3 step)0.04 0.08 015 |
| Swivel | 90° |
| Head tilting | 45° |
| Dimension of package | 1616x1550x2080mm |
| Net weight | 1420kg |
| Gross weight | 1380kg |
