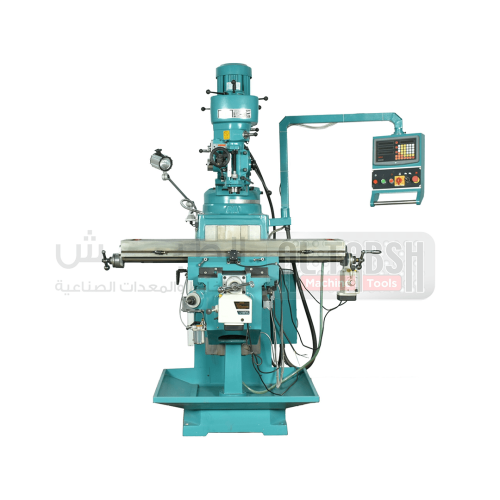

MILLING MACHINE SPVM254 380V WITH DRO TABLE SIZE 1270 X 254MM
SUMORI ESPANZA / SPVM254
SPVM254 Vertical milling machine is one of our most economical and durable Milling machines. And it is medium in size and delicate in design.
SPVM254 Vertical milling machine is one of our most economical and durable Milling machines. And it is medium in size and delicate in design.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SPVM254 |
| Table size | 254×1270 |
| Longitudinal travel | 850mm |
| Cross travel | 400mm |
| Vertical travel | 420mm |
| T-slot no. and size | 3×16 |
| Ram travel | 470mm |
| Distance from spindle nose to table surface | 0~420mm |
| Spindle hole taper | R8/ISO30 |
| Spindle travel | 127mm |
| Main motor | 2.25Kw or 3.75Kw |
| Diameter of quill | 95mm |
| Distance from spindle to table | 90~370mm |
| Distance from horizontal spindle to table | 0~280mm |
| Distance from spindle to column | 200~700mm |
| Spindle speeds (16 step)80~5440 rpm(V) | 40~1300r.p.m(H) |
| Feeding of quill | (3 step)0.04 0.08 015 |
| Swivel | 90° |
| Head tilting | 45° |
| Dimension of package | 1616x1550x2080mm |
| Net weight | 1380kg |
| Gross weight | 1420kg |
