LATHE MACHINE TAB-LM770
AL-TABSH / TAB-LM770

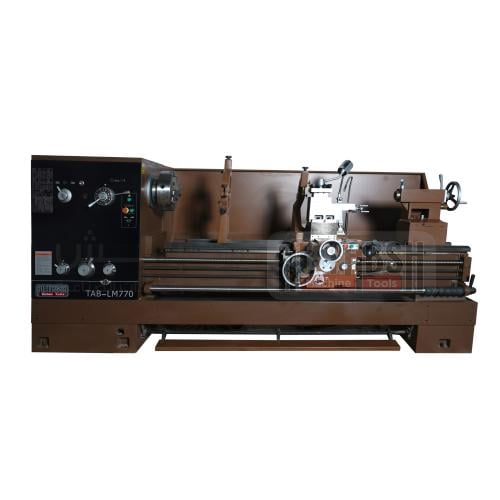

TABLM770 Horizontal lathe is with swing 770mm for Medium industrial, the motor power is 7.5kw.
TABLM770 Horizontal lathe is with swing 770mm for Medium industrial, the motor power is 7.5kw.
Technical Specifications
| Specification | Details |
|---|---|
| Model | TAB-LM770 |
| Max. swing over bed | Ф770mm |
| Max. swing over carriage | Ф575mm |
| Max. swing over gap | Ф1050mm |
| Bed width | 405mm |
| Effective length of gap | 230mm |
| Distance between centers | 1000/1500/2000/3000mm |
| Max turning length | 830/1330/1830/2830mm |
| Spindle nose | D8 |
| Spindle bore | Ф105mm |
| Taper bore of spindle | Ф113mm 1:20 |
| Steps of spindle speed | 12 |
| Range of spindle speed | 36~1600rpm |
| Range of longitudinal feeds | 0.063~2.52 (0.023" ~0.937" )mm |
| Range of cross feeds | 0.027~1.07(0.010" ~0.404" )mm |
| RAPID TRAVEL – Longitudinal | 4500mm/min |
| RAPID TRAVEL – Cross | 1900mm/min |
| Metric pitch threads | 1~14mm/ 22 |
| Whit-worth threads | 28~2TPI/ 26 |
| Module threads | 0.5~7MP/ 18 |
| D.P. Threads | 56~4DP/ 24 |
| Taper bore | M.T.NO.5 |
| Max.travel | 150(5~29/32 )mm |
| External diameter | Ф75(2~61/64 )mm |
| Size of tool shank | 25×25mm |
| Max travel of cross slide | 430mm |
| Max.travel of top slide | 145mm |
| Main motor power | 7.5kw |
| Overall dimension (LxWxH) | 2500/3000/3500/4500x1100x1540mm |
| Net weight | 3600/3800/4000/4500kg |
