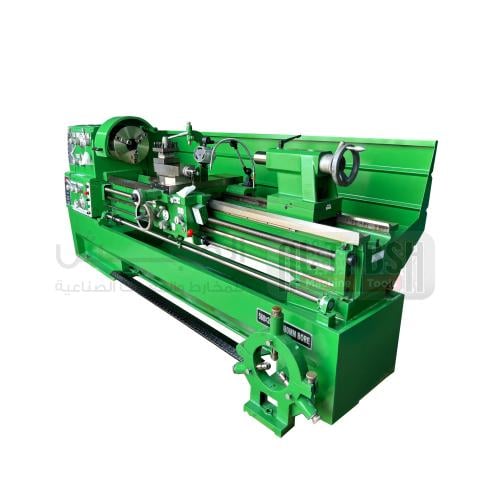

LATHE MACHINE SP2121
/ SP2121 560*2000
SP2121 lathe machine can be with spindle speed 12 steps or variable speed. It is an affordable universal lathe machine. This manual lathe machine could be 80mm or 105mm spindle bore. Now we have developed new specification of lathe machine with automatic lubrication system.
SP2121 lathe machine can be with spindle speed 12 steps or variable speed. It is an affordable universal lathe machine. This manual lathe machine could be 80mm or 105mm spindle bore. Now we have developed new specification of lathe machine with automatic lubrication system.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP2121 |
| Swing over bed | 560 mm |
| Swing over cross slide | 350 mm |
| Swing over gap | 788 mm |
| Distance between centers | 2000 / 3000 mm |
| Bed width | 350 mm |
| Spindle bore | 80 mm / 103 mm |
| Spindle taper | MT7 |
| Spindle nose | D1‐8 |
| Spindle speeds | 25–1600 rpm |
| Longitudinal feeds | 0.059–1.646 mm/rev |
| Traverse feeds | 0.020–0.573 mm/rev |
| Tailstock quill travel | 180 mm |
| Tailstock taper | MT5 |
| Inch threads | 2–112 TPI (60 types) |
| Metric threads | 0.2–14 mm (47 types) |
| Main motor | 7.5 kW (10 hp) |
| Coolant pump | 100 W |
| Dimensions & Weight (approx.) | 4400×1120×1430 mm |
| Net weight | ~3500 kg |
| Gross weight | ~3900 kg |
