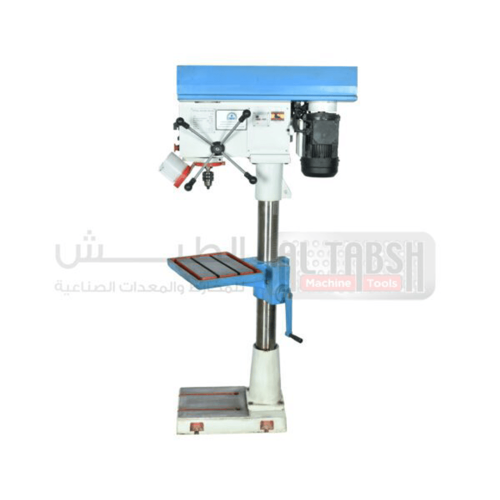

DRILLING MACHINE SP3103 25MM DIGITAL – CLUTCH 25MM
SUMORI ESPANZA / SP3103
This SP3103 machine is a step-less timing vertical drilling machine with a wide belt, light in weight small in volume easy to operate, safe, and reliable. It is a universal machine that could be widely used for small and middle-sized workpieces or drilling spot facing, reaming, tapping, etc. And it also could equip many kinds of accessories, to extend machining function and usage area. Digital speeds screen installed These machines are suitable for machining workshops, maintenance workshops, and mini-type workshops.
This SP3103 machine is a step-less timing vertical drilling machine with a wide belt, light in weight small in volume easy to operate, safe, and reliable. It is a universal machine that could be widely used for small and middle-sized workpieces or drilling spot facing, reaming, tapping, etc. And it also could equip many kinds of accessories, to extend machining function and usage area. Digital speeds screen installed These machines are suitable for machining workshops, maintenance workshops, and mini-type workshops.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP3103 |
| Max. drilling diameter (steel) | 25mm |
| Max. taping diameter (steel) | M12mm |
| Max. stroke of the spindle | 110mm |
| Distance between spindle center line to the generating line of column | 230mm |
| Max. distance between spindle end to the surface of the worktable | 690mm |
| Max. distance between spindle end to the worktable surface of the base | 555mm |
| Max. stroke of worktable and its bracket | 1180mm |
| Spindle taper bore | MT3 |
| Number of speed steps of the spindle | Stepless |
| Spindle speed range | 80~1600r/min |
| Working area of the worktable (L x W) | 400x320mm |
| Working area of the worktable of the base (L x W) | 340x320mm |
| Diameter of column | 100mm |
| Power of the main power | 0.55/0.85kw |
| Machine dimension (L×B×H) | 820x530x1715mm |
| Packing dimension(L×B×H) | 860x580x1800mm |
| Net weight / Gross weight | 245/280kg |
