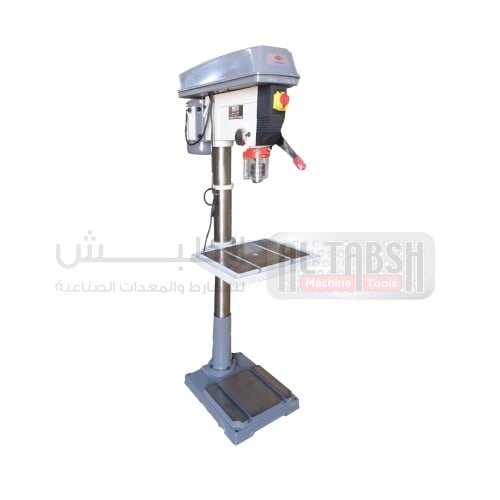

DRILL PRESS SP5232B 32MM 1500W 380V 3 PHASE
SUMORE / SP5232B
SP5232B drill press belongs to one of our most economical manual drill press machines it is medium-sized and delicate in design
SP5232B drill press belongs to one of our most economical manual drill press machines it is medium-sized and delicate in design
Technical Specifications
| Specification | Details |
|---|---|
| Model | SP5232B |
| Drilling capacity | Ø32mm(1—1/4") |
| Motor power | 1500W |
| Chuck capacity | 5-20mm |
| Spindle stroke | 120mm |
| Class of speed | 12 |
| Speed 60Hz | 150~2450/180~2940 R.P.M |
| Spindle taper | MT4 |
| Auto-feeding step of worktable | 255mm |
| Max distance from spindle end to surface of table | 745mm |
| Max distance from spindle end to surface of base | 1205mm |
| Swing | 510mm |
| Table size | 420X480mm |
| Base size | 560X450mm |
| Column diameter | Ø92mm |
| Height Net | 1710mm |
| weight / Gross weight | 125/130kg |
