CRIMPING MACHINE MT- 51WS 380V
/ MT-51WS

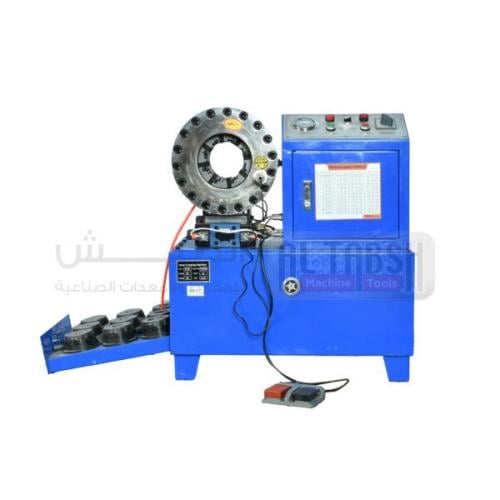

MT‐51WS is a compact hose crimping machine designed for hydraulic and air hoses from 1/4″ to 2″. It is equipped with a 3 kW motor, 14 hydraulic and 4 air hose die sets, and an English control panel with foot pedal for easy operation. The integrated oil tank with built‐in pump reduces noise and improves cooling, while the micrometer adjustment and quick‐change screw mold ensure accurate, repeatable crimps in workshop and maintenance applications.
MT‐51WS is a compact hose crimping machine designed for hydraulic and air hoses from 1/4″ to 2″. It is equipped with a 3 kW motor, 14 hydraulic and 4 air hose die sets, and an English control panel with foot pedal for easy operation. The integrated oil tank with built‐in pump reduces noise and improves cooling, while the micrometer adjustment and quick‐change screw mold ensure accurate, repeatable crimps in workshop and maintenance applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | MT-51WS |
| Voltage / phases | 380 V, 50/60 Hz, 3‐phase |
| Motor power | 3 kW |
| Working range | – 2″ hoses, max opening 114 mm |
| Die (mould) set 14 | and 4 air hose die sets (15–63 mm). |
| Control | control panel and foot controller |
| Oil pump | Built‐in oil‐tank pump |
| Adjustment | Micrometer die adjustment |
| Structure | 45# steel forged head |
| Weight / dimensions (L×W×H) | 245 kg; 730 × 600 × 850 mm |
