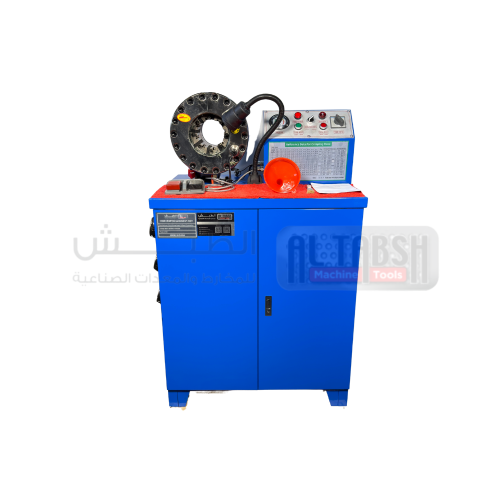

CRIMPING MACHINE MT- 51BY 380V
/ MT-51BY
Hydraulic hose crimping machine model MT-51BY with 3 kW motor power, operating on 380 V, 50/60 Hz, 3‐phase supply. Working range from 1/4″ up to 2″ hoses with maximum opening of 114 mm, supplied with 14 hydraulic and 4 air hose die sets (15–63 mm) and equipped with foot pedal control, jog/pedal/auto modes, micrometer adjustment, built‐in oil tank pump and a robust 45# forged steel head for long service life
Hydraulic hose crimping machine model MT-51BY with 3 kW motor power, operating on 380 V, 50/60 Hz, 3‐phase supply. Working range from 1/4″ up to 2″ hoses with maximum opening of 114 mm, supplied with 14 hydraulic and 4 air hose die sets (15–63 mm) and equipped with foot pedal control, jog/pedal/auto modes, micrometer adjustment, built‐in oil tank pump and a robust 45# forged steel head for long service life
Technical Specifications
| Specification | Details |
|---|---|
| Model | MT-51BY |
| Voltage / phases | 380 V, 50/60 Hz, 3‐phase |
| Motor power | 3 kW |
| Working range | – 2″ hoses, max opening 114 mm |
| Die (mould) set 14 | and 4 air hose die sets (15–63 mm). |
| Control foot | control and jog/pedal/auto modes. |
| Oil pump | Built‐in oil‐tank pump |
| Adjustment | Micrometer die adjustment |
| Structure | 45# steel forged head |
| Weight / dimensions (L×W×H) | 300 kg; 860 × 640 × 1300 mm |
