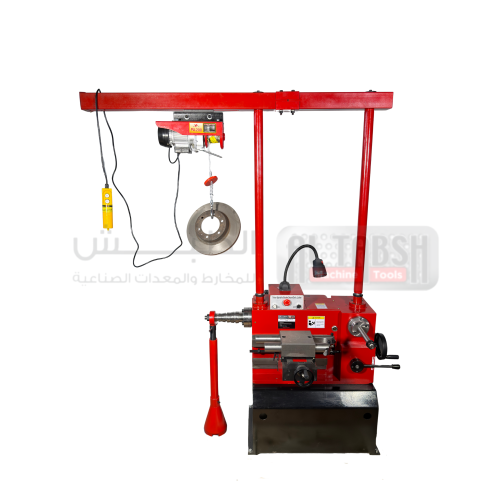

BRAKE DRUM/DISC LATHE MACHINE 380V 3 PHASES T8465
/ T8465
This equipment T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc, and shoe of automobiles from mini-car to heavy trucks.
This equipment T8465 is a kind of lathe. It can fulfill the reparation of the brake drum, disc, and shoe of automobiles from mini-car to heavy trucks.
Technical Specifications
| Specification | Details |
|---|---|
| Model | T8465 |
| Processing diameter for Brake Drum | 180-650mm |
| Processing diameter for Brake Disc | 102-500mm |
| Rotating speed of workpiece | 30/52/85 r/min |
| Max. Travel of Tool | 250mm |
| Feeding rate | 0.16mm/r |
| Packing dimensions (L/W/H) | 800/875/1050mm |
| Net weight | 390kgs |
| Motor power | 1.1kw |
