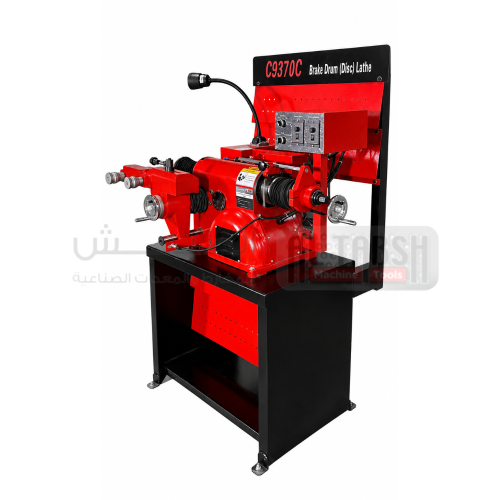

BRAKE DRUM/DISC LATHE MACHINE 380V 3 PHASES C9370C
/ C9370C
The machine is designed for precision resurfacing of brake drums and brake discs. It features multiple spindle speeds, adjustable feed rates, and stable cutting performance to ensure high machining accuracy. Its compact design, reliable motor, and user-friendly operation make it ideal for automotive repair workshops and brake service centers.
The machine is designed for precision resurfacing of brake drums and brake discs. It features multiple spindle speeds, adjustable feed rates, and stable cutting performance to ensure high machining accuracy. Its compact design, reliable motor, and user-friendly operation make it ideal for automotive repair workshops and brake service centers.
Technical Specifications
| Specification | Details |
|---|---|
| Model | C9370C |
| Processing Diameter (Brake Drum) | Ø152 – Ø700 mm |
| Processing Diameter (Brake Plate) | Ø180 – Ø460 mm |
| Processing Depth | 260 mm |
| Spindle Speed | 70 / 80 / 115 rpm |
| Feed Rate | 0.05 – 0.5 mm/rev |
| Max. Cutting Depth | 0.5 mm |
| Motor Power | 0.75 kW |
| Overall Dimensions (L × W × H) | 1360 × 980 × 1520 mm |
| Net Weight | 330 kg |
| Gross Weight | 400 kg |
