VERTICAL BAND SAW VS-400 220V/380V 60HZ 3-PHASE
/ VS-400

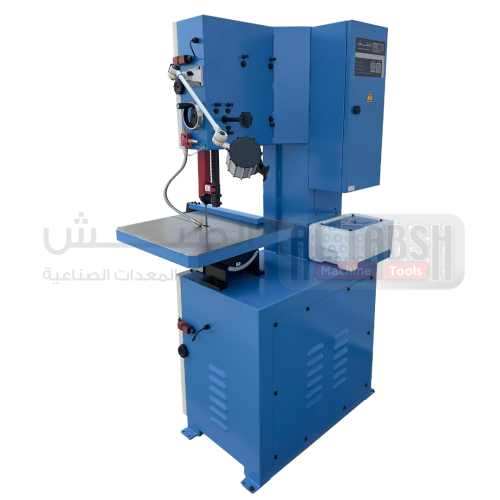

Vertical Band Saw VS-400 for metal cutting, designed for accurate and versatile workshop use. Offers cutting capacity up to 285 mm height and 400 mm width, with a 550×600 mm tilting table (45° right, 15° left) and variable blade speed from 0 to 1400 rpm, using blades 3390–3467 mm long and 3–16 mm wide. Equipped with 0.09 kW grinding motor, 1.5 kW main motor, and 2.5 kVA blade welder, operating on 220/380 V, 3‐phase, 60 Hz power, with packing size around 107×80×200 cm and net/gross weight about 315/360 kg. Tags: VS-400, vertical band saw, metal bandsaw, workshop saw, cutting machine, industrial bandsaw, 220V, 380V, 3‐phase.
Vertical Band Saw VS-400 for metal cutting, designed for accurate and versatile workshop use. Offers cutting capacity up to 285 mm height and 400 mm width, with a 550×600 mm tilting table (45° right, 15° left) and variable blade speed from 0 to 1400 rpm, using blades 3390–3467 mm long and 3–16 mm wide. Equipped with 0.09 kW grinding motor, 1.5 kW main motor, and 2.5 kVA blade welder, operating on 220/380 V, 3‐phase, 60 Hz power, with packing size around 107×80×200 cm and net/gross weight about 315/360 kg. Tags: VS-400, vertical band saw, metal bandsaw, workshop saw, cutting machine, industrial bandsaw, 220V, 380V, 3‐phase.
Technical Specifications
| Specification | Details |
|---|---|
| Model | BS-400 |
| Max cutting height | 285 mm (11.2") |
| Max cutting width | 400 mm (15.7") |
| Table size | 550 × 600 mm (21.7" × 23.6") |
| Blade speed | 0–1400 rpm |
| Saw blade length | 3390–3467 mm |
| Saw blade width | 3–16 mm |
| Table swivel | R‐45°, L‐15° |
| Grinder motor | 0.09 kW |
| Main motor | 1.5 kW |
| Electrical welder | 2.5 kVA |
| Input voltage | 380 V / 220 V, 3‐phase 60 Hz |
| Packing size | 107 × 80 × 200 cm |
| Net / gross weights | 315 / 360 kg |
