TRACK DISMANTLING PRESS 160 TON
/

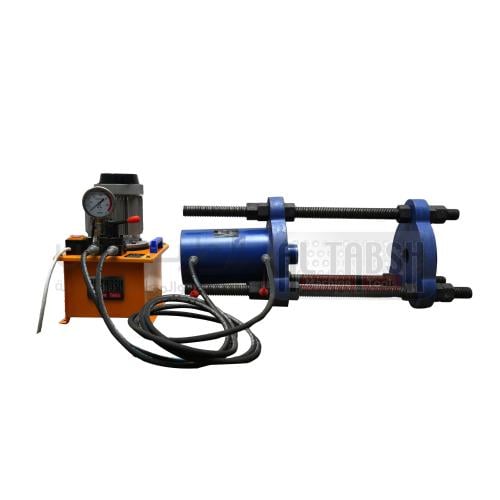

Hydraulic Track Dismantling Press 160TON 160‐ton hydraulic track press for heavy excavator and dozer chains, using a 1.5 kW power pack on 380 V 60 Hz with adjustable working pressure 0–63 MPa, 1.2 L/min flow, 16 L tank, and 46# hydraulic oil, delivering 160‐ton cylinder thrust with 200 mm stroke.
Hydraulic Track Dismantling Press 160TON 160‐ton hydraulic track press for heavy excavator and dozer chains, using a 1.5 kW power pack on 380 V 60 Hz with adjustable working pressure 0–63 MPa, 1.2 L/min flow, 16 L tank, and 46# hydraulic oil, delivering 160‐ton cylinder thrust with 200 mm stroke.
Technical Specifications
| Specification | Details |
|---|---|
| Model | 160TON |
| Motor power | 1.5KW |
| Voltage | 380v-60Hz |
| Working pressure | 0-63Mpa |
| Working flow | 1.2L / min |
| Fuel tank capacity (L) | 16L |
| Medium | 46# Hydraulic oil |
| Hydraulic cylinder thrust | 160T |
| Stroke | 200mm |
