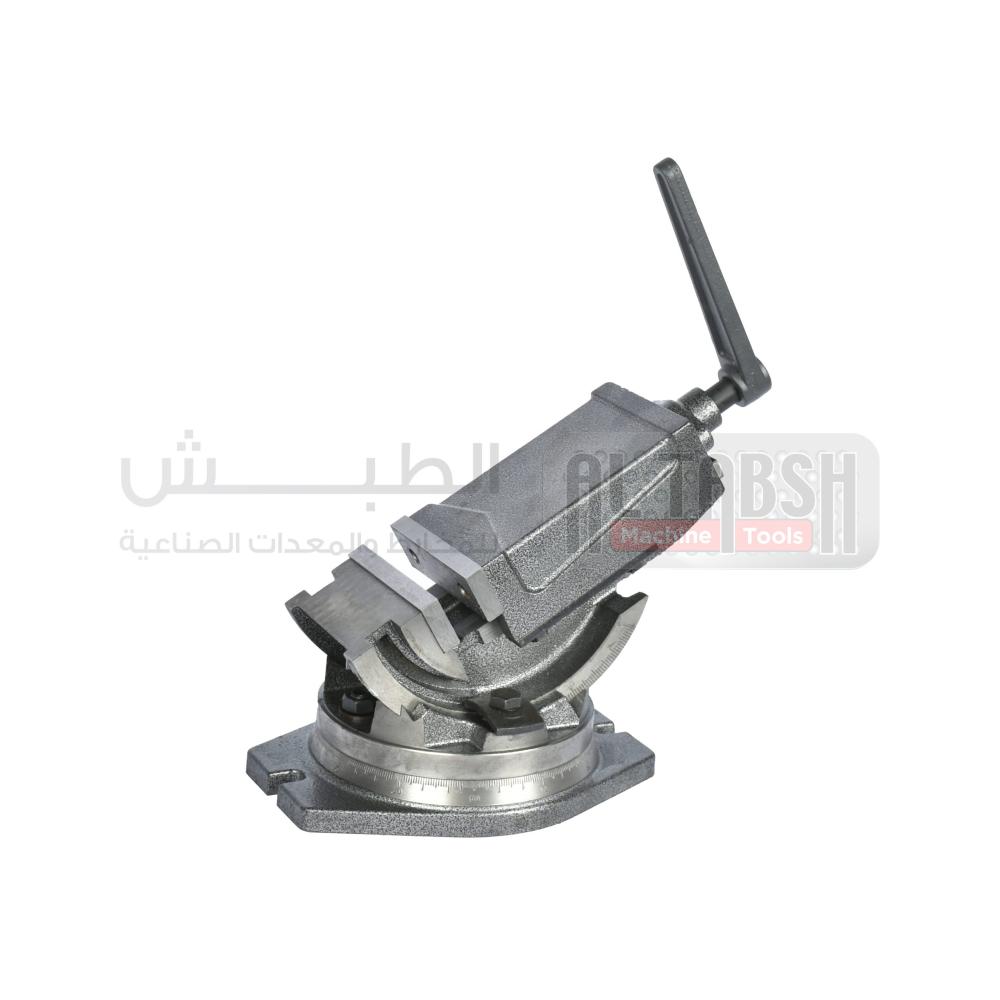

TILT MILLING VISE
2Axis Machine Vises are perfect for applications that require machining on an angle. These high-precision vises are constructed of close-grained, high-tensile alloy castings. All boast 90 degrees vertical and 180-degree horizontal indexing, 360-degree swivel base, and 90-degree tilting range.
2Axis Machine Vises are perfect for applications that require machining on an angle. These high-precision vises are constructed of close-grained, high-tensile alloy castings. All boast 90 degrees vertical and 180-degree horizontal indexing, 360-degree swivel base, and 90-degree tilting range.
Technical Specifications
| Specification | Details |
|---|---|
| QHK100 | Jaw Width: 100 mm | Jaw Height: 41 mm | Max. Opening: 80 mm | Gross / Net Weight: 18 / 17 kg |
| QHK125 | Jaw Width: 125 mm | Jaw Height: 45 mm | Max. Opening: 95 mm | Gross / Net Weight: 28 / 27 kg |
| QHK160 | Jaw Width: 160 mm | Jaw Height: 50 mm | Max. Opening: 125 mm | Gross / Net Weight: 37 / 36 kg |
